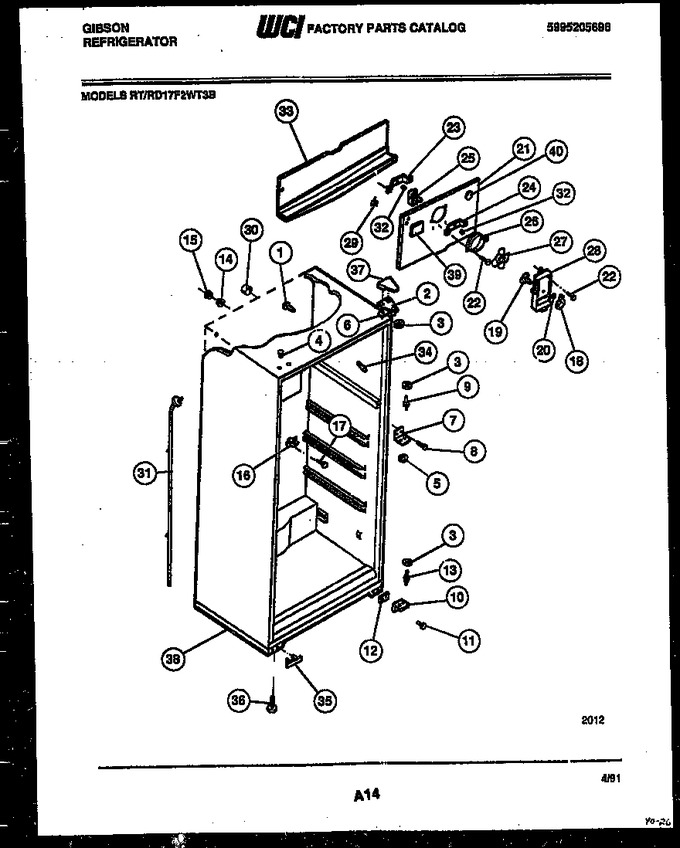

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| 2 | 5308012843 | Bracket-hinge Top |
|
$ 71.47 | |||||
| 3 | 5308000007 | Washer-nylon (3) |
|
- | |||||
| 4 | 5303001679 | Plug Button-hinge-coffee |
|
- | |||||
| 4 | 5303001388 | Plug Button-hinge-white |
|
$ 2.60 | |||||
| 4 | 5303001678 | Plug Button-hinge-wheat |
|
- | |||||
| 4 | 5303001389 | Plug Button-hinge-almond |
|
- | |||||
| 4 | 5303001677 | Plug Button-hinge-avoc |
|
- | |||||
| 5 | 5303001038 | Washer-nylon |
|
$ 13.34 | |||||
| 6 | 5303001037 | Shim-hinge Top |
|
$ 12.39 | |||||
| 7 | 5303001369 | Bracket-hinge-center |
|
- | |||||
| 8 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 9 | 5308000184 | Pin-hinge Center |
|
$ 8.87 | |||||
| 10 | 5303202834 | Bracket-hinge (lower) |
|
$ 89.41 | |||||
| 11 | 5303001320 | Screw-hinge Lower (2) |
|
- | |||||
| 12 | 5303001323 | Shim-hinge Lower |
|
- | |||||
| 13 | 5303001321 | Pin-hinge Lower |
|
$ 17.25 | |||||
| 14 | 5303001286 | Ferrule-inner |
|
- | |||||
| 15 | 5303001287 | Ferrule-outer |
|
- | |||||
| 16 | 5308000056 | Spout Drain |
|
$ 11.66 | |||||
| 17 | 5303001361 | Pin, Push, (2) |
|
- | |||||
| 18 | 5308000081 | Knob - Damper Control |
|
$ 36.02 | |||||
| 19 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 20 | 5303001028 | Nut, Push |
|
- | |||||
| 21 | 3001527 | Cover-coil |
|
- | |||||
| 22 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 23 | 5303001227 | Bracket-motor Rear |
|
- | |||||
| 24 | 5303001226 | Bracket-motor Front |
|
- | |||||
| 25 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 26 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 27 | 5308000010 | Fan |
|
Immediately | $ 49.03 | ||||
| 28 | 5303001334 | Cover-fan |
|
- | |||||
| 29 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 30 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 31 | 5303210377 | Tube-drain |
|
$ 109.31 | |||||
| 32 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 33 | 08010005 | Drain Trough |
|
- | |||||
| 34 | 5303202338 | Trim-corner Cabinet-wheat |
|
- | |||||
| 34 | 5303202340 | Trim-corner Cabinet-almond |
|
- | |||||
| 34 | 5303202336 | Trim-corner Cabinet-white |
|
- | |||||
| 34 | 5303202337 | Trim-corner Cabinet-avoc |
|
- | |||||
| 34 | 5303202339 | Trim-corner Cabinet-coffee |
|
- | |||||
| 35 | 5303001478 | Plug-lower Hinge |
|
- | |||||
| 36 | 5303205540 | Screw, Leveling (2) |
|
- | |||||
| 37 | 5303001664 | Cover - Hinge-avoc |
|
- | |||||
| 37 | 5303001666 | Cover - Hinge-coffee |
|
- | |||||
| 37 | 5308012820 | Cover - Hinge-white |
|
- | |||||
| 37 | 5303001665 | Cover - Hinge-wheat |
|
- | |||||
| 37 | 5308012933 | Cover-hinge-almond |
|
- | |||||
| 38 | 08010091 | Base-cabinet |
|
- | |||||
| 39 | 5308013636 | Plug, Decorative |
|
- | |||||
| 40 | 5303203044 | Plug-short Test Hole |
|
- | |||||
| *43457 | 5304509705 | Grommet-shelf Mtg (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| *43457 | 5308012296 | Plate-tapping (2) |
|
$ 47.44 | |||||
| *43457 | 5308016571 | Plug-liner (6) |
|
$ 4.79 | |||||
| *43457 | 5304500407 | Grommet-shelf Mtg (2) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 21A | 5308000126 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 29A | 5308002748 | Screw |
|
- | |||||
| 2A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 31A | 5308009755 | Ring Seal (non-illustrated) |
|
- | |||||
| 36A | 5308003584 | Nut Anchor (2) (non-illustrated) |
|
$ 7.30 |
