02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

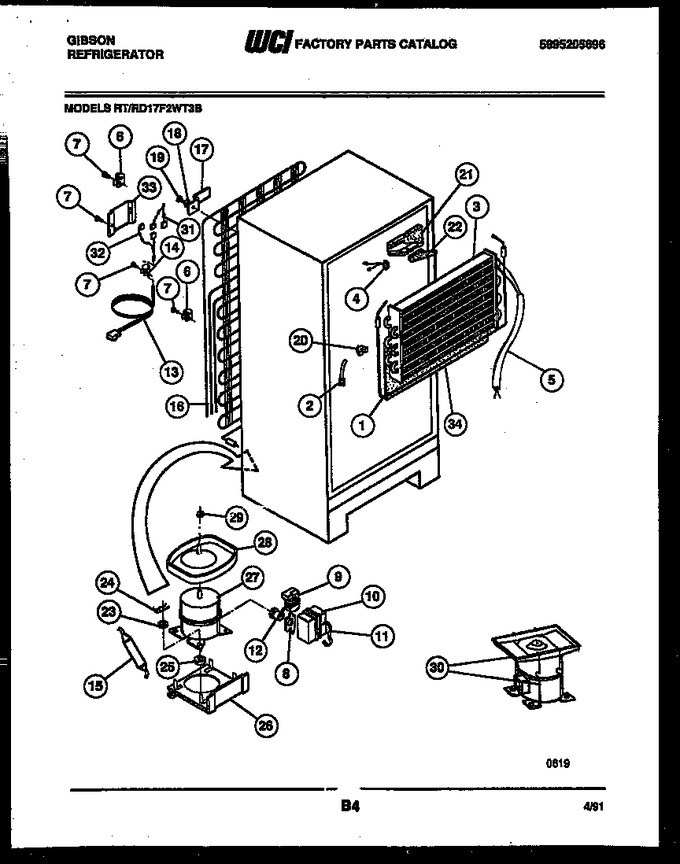

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308009754		Heater-defrost				$ 157.76
2	5308000110		Strap-evap (2)			Immediately	$ 59.82
3	5308009756		Evaporator		Appelez-nous	-
4	5303917954		Thermo-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
5	5308000728		Heat Exchanger		Appelez-nous	-
6	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
7	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
8	5303017762		Clip-overload		Appelez-nous	-
9	5303007171		Relay		Appelez-nous	-
10	5303006411		Cover, Terminal		Appelez-nous	-
11	5303006412		Strap-bale		Appelez-nous	-
12	5303007416		Overload		Appelez-nous	-
13	5316254901		Service Cord		Appelez-nous	-
14	5303001199		Clamp				$ 65.92
15	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
16	5303001341		Condenser		Appelez-nous	-
17	5303001342		Bracket-cond (4)		Appelez-nous	-
18	5308009617		Washer (2)		Appelez-nous	-
19	5308000039		Screw		Appelez-nous	-
20	5308017227		Block Insulation-lh		Appelez-nous	-
21	5308013648		Block Insulation-rh		Appelez-nous	-
22	5303007287		Plug-insulation Rh		Appelez-nous	-
23	5308003633		Washer-compressor (4)				$ 35.67
24	5308003596		Clip-compressor (4)				$ 6.62
25	5308008778		Grommet Compressor (4)		Appelez-nous	-
26	5308013663		Plate-compressor		Appelez-nous	-
27	5303916411		Compressor W/ Electricals		Appelez-nous	-
28	5300184715		Pan-defrost		Appelez-nous	-
29	5303001348		Nut-lock				$ 2.73
30	5303916001		Pan Retainer Kit				$ 78.75
31	3001383		Harness-divider		Appelez-nous	-
32	5303001347		Harness-compressor		Appelez-nous	-
33	5303001197		Cover-wiring		Appelez-nous	-
34	5316651102		Insulator, Plastic				$ 53.04
*43473	5300189377		Hot Tube Repair Kit		Appelez-nous	-
28A	5308017610		Sound Tape (non-illustrated)		Appelez-nous	-
33A	3007728		Clamp-cable (non-illustrated)		Appelez-nous	-
