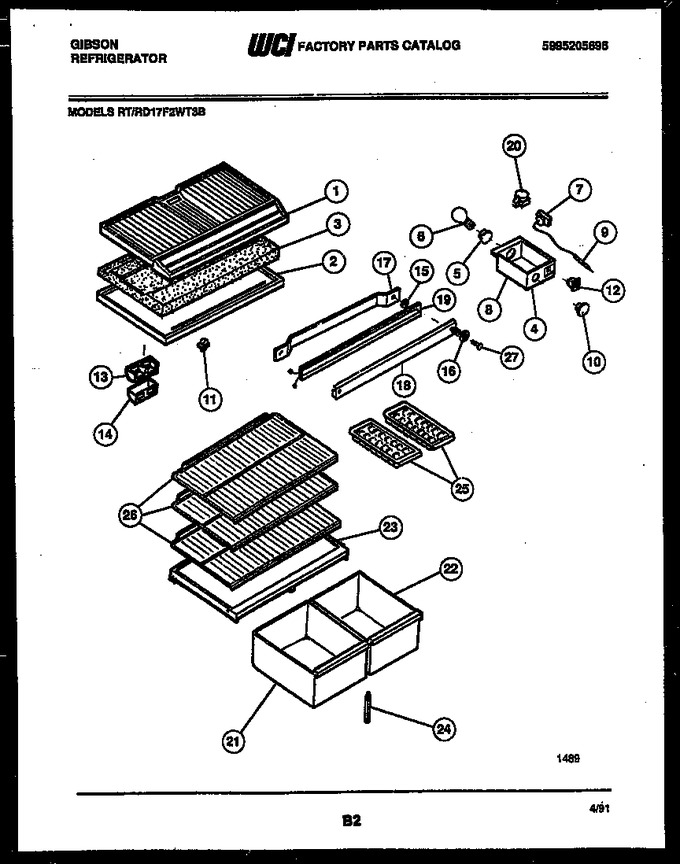

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001537		Bottom-freezer		Appelez-nous	-
2	5303212518		Top Refrigerator		Appelez-nous	-
3	5308009750		Divider		Appelez-nous	-
4	G186126		Label, Box		Appelez-nous	-
5	5308000129		Socket-light				$ 62.16
6	5303001179		Bulb, Light		Appelez-nous	-
7	5303200810		Control-temp				$ 126.87
8	5308009730		Control Box		Appelez-nous	-
9	5303916855		Tube-plastic				$ 60.96
10	08006978		Knob-control		Appelez-nous	-
11	5308000069		Switch-light		Appelez-nous	-
12	5303200998		Switch-slide		Appelez-nous	-
13	5308000071		Air Deflector		Appelez-nous	-
14	5303001546		Cover - Air Deflector		Appelez-nous	-
15	5308010007		Spacer-mullion (2)		Appelez-nous	-
16	5308003607		Washer Mullion (2)				$ 1.00
17	5308003604		Strap, Mullion Mtg		Appelez-nous	-
18	3916133		Mullion, Coffee		Appelez-nous	-
18	5303200465		Mullion, White		Appelez-nous	-
18	3916135		Mullion-avoc		Appelez-nous	-
18	3916132		Mullion, Wheat		Appelez-nous	-
18	5303916134		Mullion, Almond		Appelez-nous	-
19	5308017408		Heater-mullion		Appelez-nous	-
20	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
21	G490015-38		Pan-crisper Lh		Appelez-nous	-
22	5303270835		Pan-crisper Rh		Appelez-nous	-
23	5349001601		Cover-crisper		Appelez-nous	-
24	5303205987		Support-crisper Cover				$ 48.41
25	5303001324		Ice Tray (2)		Appelez-nous	-
26	G181153-05		Shelf, Sliding (3)		Appelez-nous	-
27	5308012258		Screw				$ 2.25
20A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
2A	5303001380		Screw		Appelez-nous	-
3A	3001383		Harness-divider (non-illustrated)		Appelez-nous	-
7A	5303001260		Screw				$ 6.73

    View Diagram in Separate Window       Print Part List
