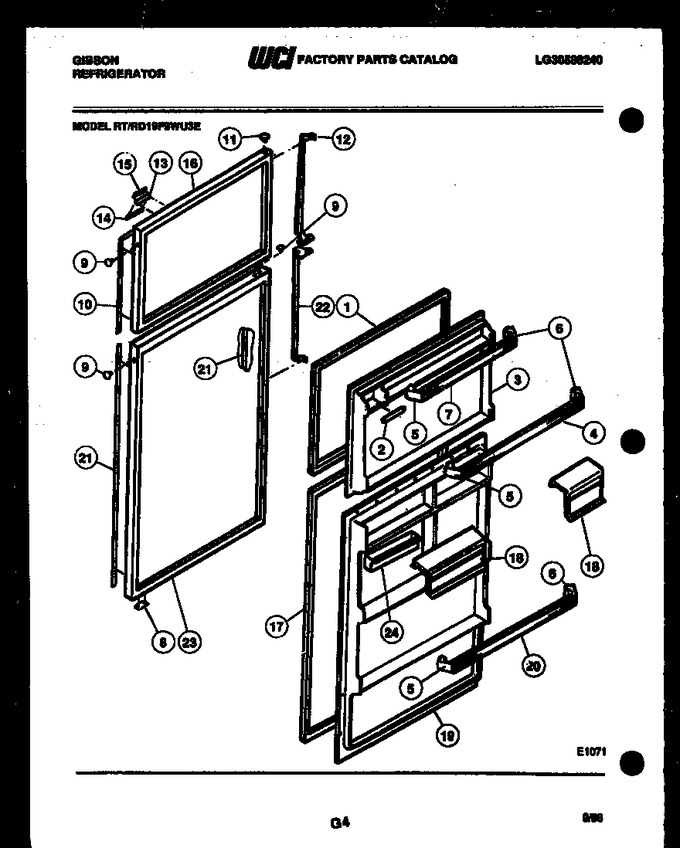

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-12		Gasket-freezer		Appelez-nous	-
2	G187492-02		Rack, Juice Can		Appelez-nous	-
3	G187493-02		Panel, Inner		Appelez-nous	-
4	G161019-62		Rack, Door		Appelez-nous	-
5	G178284-02		Support-lh (4)		Appelez-nous	-
6	G178287-02		Support-rh (4)		Appelez-nous	-
7	G161019-61		Rack, Door		Appelez-nous	-
8	G155072		Stop,door		Appelez-nous	-
9	G162977-11		Button Plug-almond		Appelez-nous	-
9	G162977-10		Button Plug-coffee		Appelez-nous	-
9	G162977-01		Button Plug-white		Appelez-nous	-
9	G162977-09		Button Plug-wheat		Appelez-nous	-
9	G162977-08		Button Plug-avocado		Appelez-nous	-
10	G167404-12		Trim, Door		Appelez-nous	-
11	G169332-01		Button Plug, White		Appelez-nous	-
11	G169332-11		Button Plug, Almond		Appelez-nous	-
11	G169332-10		Button-plug, Coffee		Appelez-nous	-
11	G169332-09		Button Plug, Wheat		Appelez-nous	-
11	G169332-08		Button Plug-avocado		Appelez-nous	-
12	G168506-01		Handle Assembly		Appelez-nous	-
13	G175117-02		Nameplate		Appelez-nous	-
14	3019041		Label-lower		Appelez-nous	-
15	G188378-02		Label-upper Freezer		Appelez-nous	-
16	G189031-09		Panel-freezer-wheat		Appelez-nous	-
16	G189031-11		Panel-freezer-almond		Appelez-nous	-
16	G189031		Panel-freezer-white		Appelez-nous	-
16	G189031-08		Panel-freezer-avocado		Appelez-nous	-
16	G189031-10		Panel-freezer-coffee		Appelez-nous	-
17	G186932-13		Gasket-refrigerator		Appelez-nous	-
18	G187460-02		Door, Dairy (2)		Appelez-nous	-
19	G187537-02		Panel, Inner		Appelez-nous	-
20	G161019-65		Rack-door (2)		Appelez-nous	-
21	G167150-11		Trim (2)		Appelez-nous	-
22	G168505-01		Handle Assembly		Appelez-nous	-
23	G188239-08		Panel-refrigerator-avocado		Appelez-nous	-
23	G188239		Panel-refrigerator-white		Appelez-nous	-
23	G188239-09		Panel-refrigerator-wheat		Appelez-nous	-
23	G188239-10		Panel-refrigerator-coffee		Appelez-nous	-
23	G188239-11		Panel-refrigerator-almond		Appelez-nous	-
24	G187461-01		Tray, Utility		Appelez-nous	-
12A	G185566		Screw		Appelez-nous	-
16A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
19A	G144049		Screw		Appelez-nous	-
20A	3017719		Snugger-shelf (2) (non-illustrated)		Appelez-nous	-
22A	G185566		Screw		Appelez-nous	-
23A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
3A	G144049		Screw		Appelez-nous	-
