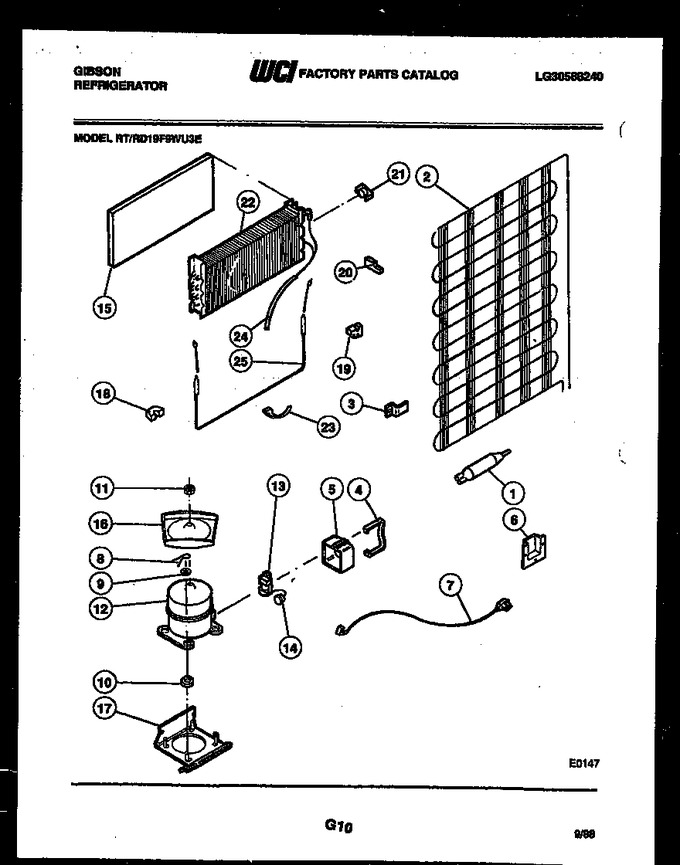

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186717		Drier		Appelez-nous	-
2	G163133		Condenser		Appelez-nous	-
3	G164637		Bracket-mounting (4)		Appelez-nous	-
4	G166057		Strap, Bale		Appelez-nous	-
5	G166056		Cover, Terminal		Appelez-nous	-
6	G183584		Cover, Wiring		Appelez-nous	-
7	G162549-01		Cord, Service		Appelez-nous	-
8	G163204		Clip (4)		Appelez-nous	-
9	G164634		Washer (4)		Appelez-nous	-
10	G177617		Grommet (4)		Appelez-nous	-
11	G164958		Nut, Lock		Appelez-nous	-
12	3916020		Compressor-service		Appelez-nous	-
13	3007171		Relay-service		Appelez-nous	-
14	3007416		Overload-service		Appelez-nous	-
15	G166511-01		Insulator-plastic		Appelez-nous	-
16	G184715		Pan, Defrost		Appelez-nous	-
17	G184599		Plate-compressor		Appelez-nous	-
18	G188375		Block-insulation Ls		Appelez-nous	-
19	G185299		Block-insulation Rs		Appelez-nous	-
20	G185276		Plug, Block		Appelez-nous	-
21	G162690-01		Thermostat, Defrost		Appelez-nous	-
22	G164572		Evaporator		Appelez-nous	-
23	G165546		Strap-aluminum (2)		Appelez-nous	-
24	G147918		Heat Exchanger		Appelez-nous	-
25	G178425-02		Heater-defrost		Appelez-nous	-
*83676	G166062-01		Harness-compressor		Appelez-nous	-
*83677	G189383		Hot Tube Repair Kit		Appelez-nous	-
*83678	G169873		Sound Tape		Appelez-nous	-
*83679	G167234		Pan Retainer Kit		Appelez-nous	-
*83681	G174818		Harness, Wiring		Appelez-nous	-
