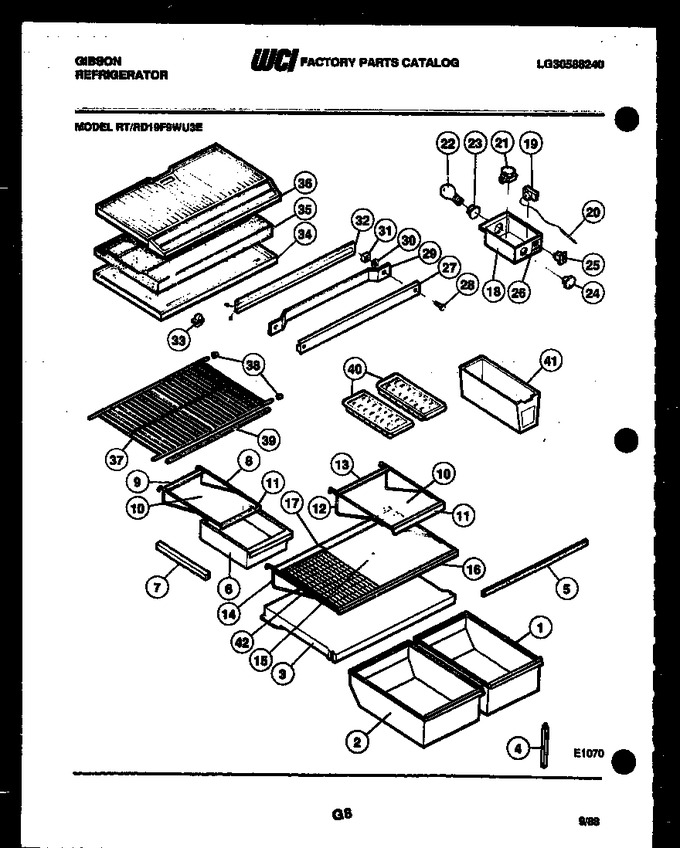

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G176639-29 | Pan-crisper Rs |
|
- | |||||
| 2 | G490015-49 | Pan-crisper Ls |
|
- | |||||
| 3 | G490064-01 | Cover, Crisper |
|
- | |||||
| 4 | G166310-02 | Support, Cover |
|
- | |||||
| 5 | G180108-07 | Gasket, Cover |
|
- | |||||
| 6 | G187181-02 | Pan, Meat |
|
- | |||||
| 7 | G187215-03 | Hanger, Pan Ls |
|
- | |||||
| 8 | G187218-10 | Frame, Mk |
|
- | |||||
| 9 | G172436-13 | Trim-rear |
|
- | |||||
| 10 | G171654-51 | Shelf, Glass (3) |
|
- | |||||
| 11 | G172410-05 | Trim-front (3) |
|
- | |||||
| 12 | G171608-14 | Frame-shelf (2) |
|
- | |||||
| 13 | G172436-14 | Trim-rear (2) |
|
- | |||||
| 14 | G186665-02 | Frame-full |
|
- | |||||
| 15 | G171654-54 | Shelf-glass Full |
|
- | |||||
| 16 | G172410-07 | Trim-front |
|
- | |||||
| 17 | G172436-19 | Trim, Rear |
|
- | |||||
| 18 | G176722-03 | Box-control |
|
- | |||||
| 19 | 3200810 | Control-temperature |
|
- | |||||
| 20 | G142176-43 | Tube-plastic |
|
- | |||||
| 21 | G187484 | Timer-defrost |
|
- | |||||
| 22 | K1186186 | Bulb, Light |
|
- | |||||
| 23 | G168302 | Socket Light |
|
- | |||||
| 24 | G490107-02 | Knob, Control |
|
- | |||||
| 25 | G178402-02 | Switch-slide |
|
- | |||||
| 26 | G188379-02 | Label-control Box |
|
- | |||||
| 27 | G180373-11 | Mullion Almond |
|
- | |||||
| 27 | G180373-01 | Mullion, White |
|
- | |||||
| 27 | G180373-08 | Mullion, Avocado |
|
- | |||||
| 27 | G180373-09 | Mullion Wheat |
|
- | |||||
| 27 | G180373-10 | Mullion Coffee |
|
- | |||||
| 28 | G183103 | Screw-mounting (4) |
|
- | |||||
| 29 | G490087 | Strap, Mullion Mounting |
|
- | |||||
| 30 | G166847 | Washer-steel (4) |
|
- | |||||
| 31 | G490082 | Spacer (2) |
|
- | |||||
| 32 | G168722 | Heater-mullion |
|
- | |||||
| 33 | G187200 | Switch-light |
|
- | |||||
| 34 | 3016367 | Top-refrigerator |
|
- | |||||
| 35 | G176777 | Divider, Styrofoam |
|
- | |||||
| 36 | G185912 | Bottom, Freezer |
|
- | |||||
| 37 | G177059-09 | Shelf - Freezer |
|
- | |||||
| 38 | 3201150 | End Cap (2) |
|
$ 4.57 | |||||
| 39 | G172410-08 | Trim-front |
|
- | |||||
| 40 | G156376-01 | Tray-ice (2) |
|
- | |||||
| 41 | G163022-03 | Container, Ice |
|
- | |||||
| 42 | G186661-02 | Shelf, 4 In 1 |
|
- | |||||
| 18A | G187363 | Screw |
|
- | |||||
| 19A | G107080 | Screw |
|
- | |||||
| 1A | G177343-18 | Trim-pan (non-illustrated) |
|
- | |||||
| 21A | G105289 | Screw |
|
- | |||||
| 2A | 3201093 | Trim-pan (non-illustrated) |
|
- | |||||
| 34A | G162673 | Screw Mounting (3) (non-illustrated) |
|
- | |||||
| 6A | G177343-19 | Trim-pan (non-illustrated) |
|
- | |||||
| 7A | G187216-03 | Hanger, Pan Rs (non-illustrated) |
|
- | |||||
| 7B | G184823 | Screw-mounting (2) (non-illustrated) |
|
- |
