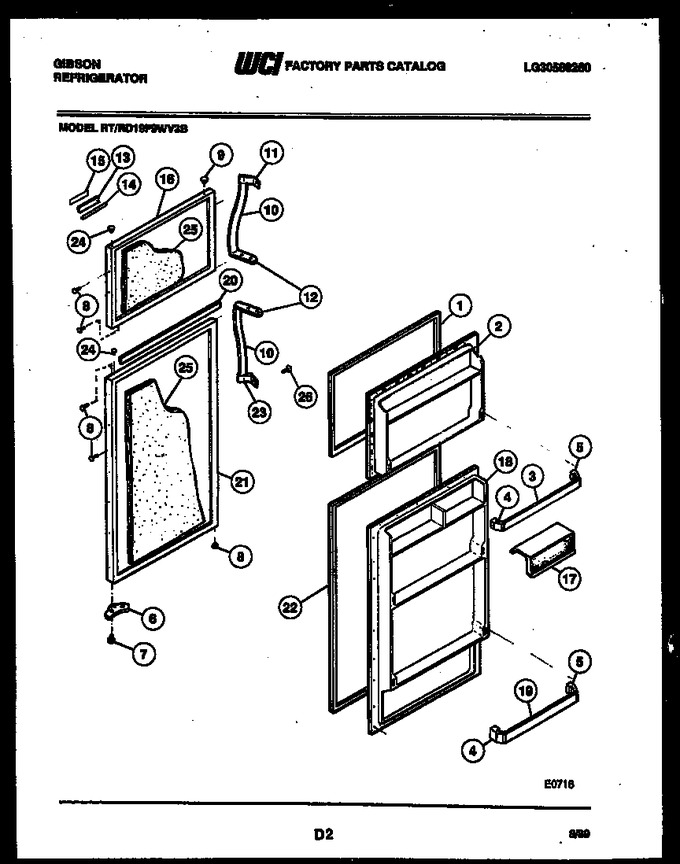

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3001486		Gasket-freezer		Appelez-nous	-
2	G183903-01		Panel-inner		Appelez-nous	-
3	32057997		Rack-door (4)		Appelez-nous	-
4	G152887-04		Support Lh (4)		Appelez-nous	-
5	G152888-04		Support Rh (4)		Appelez-nous	-
6	G155072		Door Stop (2)		Appelez-nous	-
7	G185566		Screw		Appelez-nous	-
8	G162977-11		Button Plug-almond		Appelez-nous	-
8	G162977-09		Button Plug-wheat		Appelez-nous	-
8	G162977-10		Button Plug-coffee		Appelez-nous	-
8	G162977-08		Button Plug-avocado		Appelez-nous	-
8	G162977-01		Button Plug-white		Appelez-nous	-
9	G169332-08		Button Plug-avocado		Appelez-nous	-
9	G169332-11		Button Plug, Almond		Appelez-nous	-
9	G169332-10		Button-plug, Coffee		Appelez-nous	-
9	G169332-09		Button Plug, Wheat		Appelez-nous	-
9	G169332-01		Button Plug, White		Appelez-nous	-
10	3200545		Grip-handle (2)		Appelez-nous	-
11	G179800		End Cap-top		Appelez-nous	-
12	G187329-01		Handle End (2)		Appelez-nous	-
13	G175117-02		Nameplate		Appelez-nous	-
14	3019041		Label-lower		Appelez-nous	-
15	G188378-02		Label, Upper		Appelez-nous	-
16	G178690-09		Panel, Outer, Wheat		Appelez-nous	-
16	G178690-08		Panel, Outer, Avocado		Appelez-nous	-
16	G178690		Panel, Outer, White		Appelez-nous	-
16	G178690-11		Panel, Outer, Almond		Appelez-nous	-
16	G178690-10		Panel, Outer, Coffee		Appelez-nous	-
17	G178500-21		Dairy Door (2)		Appelez-nous	-
18	G184896-01		Panel-inner		Appelez-nous	-
19	G162887-22		Rack-door (2)		Appelez-nous	-
20	G167150-12		Trim-refrig Door		Appelez-nous	-
21	G178694		Panel, Outer, White		Appelez-nous	-
21	G178694-08		Panel, Outer, Avocado		Appelez-nous	-
21	G178694-09		Panel, Outer, Wheat		Appelez-nous	-
21	G178694-10		Panel, Outer, Coffee		Appelez-nous	-
21	G178694-11		Panel, Outer, Almond		Appelez-nous	-
22	G186932-13		Gasket, Refrig. Door		Appelez-nous	-
23	G179801		Bottom Handle End Cap		Appelez-nous	-
24	G183138		Hinge Bearing (8)		Appelez-nous	-
25	3007739		Insulation-bulk		Appelez-nous	-
26	G185566		Screw		Appelez-nous	-
18A	G162585		Screw		Appelez-nous	-
2A	08002748		Screw		Appelez-nous	-
