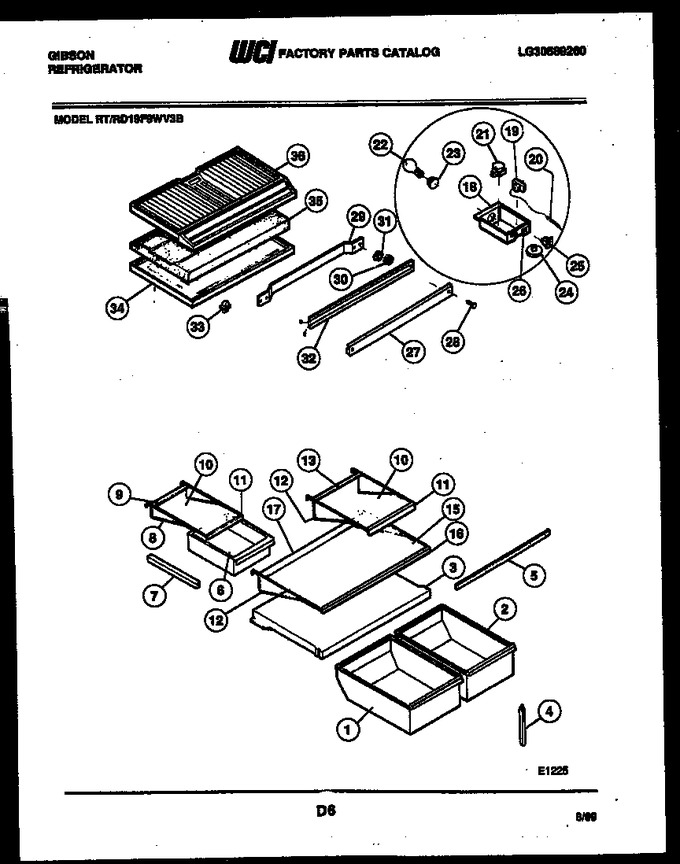

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G490015-37 | Pan-crisper Lh |
|
- | |||||
| 2 | G176639-19 | Pan-crisper Rh |
|
- | |||||
| 3 | G490064-01 | Cover, Crisper |
|
- | |||||
| 4 | G166310-02 | Support, Cover |
|
- | |||||
| 5 | G180108-04 | Gasket, Cover |
|
- | |||||
| 6 | G176918-13 | Meat Pan |
|
- | |||||
| 7 | G187215-03 | Hanger-pan Lh |
|
- | |||||
| 8 | G187218-05 | Frame-meatkeeper Shelf |
|
- | |||||
| 9 | G172436-13 | Trim-rear |
|
- | |||||
| 10 | G171654-51 | Shelf, Glass (3) |
|
- | |||||
| 11 | G172410-17 | Trim-front (3) |
|
- | |||||
| 12 | G171608-14 | Frame-shelf (2) |
|
- | |||||
| 13 | G172436-14 | Trim-rear (2) |
|
- | |||||
| 14 | G171608-15 | Frame-full Shelf |
|
- | |||||
| 15 | G171654-52 | Shelf Glass-full |
|
- | |||||
| 16 | G172410-07 | Trim-front |
|
- | |||||
| 17 | G172436-18 | Trim-rear |
|
- | |||||
| 18 | G174765-03 | Control Box |
|
- | |||||
| 19 | 3200810 | Control-temperature |
|
- | |||||
| 20 | G142176-11 | Tube Plastic |
|
- | |||||
| 21 | G187484 | Timer-defrost |
|
- | |||||
| 22 | 3001179 | Bulb, Light |
|
- | |||||
| 23 | G168302 | Socket Light |
|
- | |||||
| 24 | G174759-01 | Knob, Control |
|
- | |||||
| 25 | G178402-05 | Switch, Slide |
|
- | |||||
| 26 | G185865 | Label - Control Box |
|
- | |||||
| 27 | 3200370 | Mullion-almond |
|
- | |||||
| 27 | 3200368 | Mullion-wheat |
|
- | |||||
| 27 | 3200367 | Mullion-avocado |
|
- | |||||
| 27 | 3200366 | Mullion-white |
|
- | |||||
| 27 | 3200369 | Mullion-coffee |
|
- | |||||
| 28 | G183103 | Screw-mtg (4) |
|
- | |||||
| 29 | G490087 | Strap, Mullion Mtg |
|
- | |||||
| 30 | G166847 | Washer (2) |
|
- | |||||
| 31 | 3200464 | Spacer (2) |
|
- | |||||
| 32 | 3018916 | Heater-mullion |
|
- | |||||
| 33 | G187200 | Switch-light |
|
- | |||||
| 34 | 3016367 | Top-refrigerator |
|
- | |||||
| 35 | G176777 | Divider, Styrofoam |
|
- | |||||
| 36 | G185912 | Bottom, Freezer |
|
- | |||||
| *17687 | G170910 | Clip, Shelf (8) |
|
- | |||||
| *17687 | G174818 | Harness, Divider |
|
- | |||||
| 18A | G187363 | Screw |
|
- | |||||
| 19A | G107080 | Screw |
|
- | |||||
| 21A | G105289 | Screw |
|
- | |||||
| 34A | G162673 | Screw-mtg (3) (non-illustrated) |
|
- | |||||
| 7A | G187216-03 | Hanger-pan Rh (non-illustrated) |
|
- | |||||
| 7B | G184823 | Screw, Mtg (2) (non-illustrated) |
|
- |
