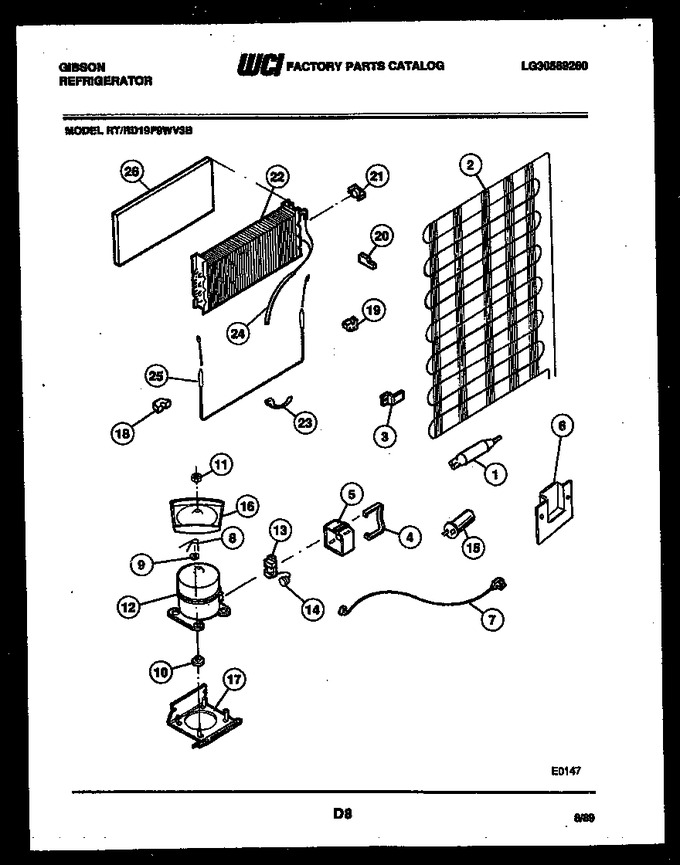

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186717		Drier		Appelez-nous	-
2	G163133		Condenser		Appelez-nous	-
3	G164637		Bracket-mtg (4)		Appelez-nous	-
4	3006412		Strap-bale		Appelez-nous	-
5	3006411		Cover-terminal		Appelez-nous	-
6	G183584		Cover, Wiring		Appelez-nous	-
7	G162549-01		Service Cord		Appelez-nous	-
8	G163204		Clip (4)		Appelez-nous	-
9	G164634		Washer (4)		Appelez-nous	-
10	G177617		Grommet (4)		Appelez-nous	-
11	G164958		Nut, Lock		Appelez-nous	-
12	3916004		Compressor		Appelez-nous	-
13	3007173		Relay		Appelez-nous	-
14	3001713		Overload		Appelez-nous	-
15	3916391		Capacitor-run		Appelez-nous	-
16	G184715		Defrost Pan		Appelez-nous	-
17	G184599		Compressor Mtg Plate		Appelez-nous	-
18	G188375		Block-insul Ls		Appelez-nous	-
19	G185299		Block-insul Rs		Appelez-nous	-
20	G185276		Plug, Block		Appelez-nous	-
21	G162690-01		Thermostat, Defrost		Appelez-nous	-
22	G162506		Evaporator		Appelez-nous	-
23	G165546		Strap-aluminum		Appelez-nous	-
24	3001465		Heat Exchanger		Appelez-nous	-
25	G178425-02		Heater-defrost		Appelez-nous	-
26	G166511-02		Insulator		Appelez-nous	-
*17691	G27669		Clamp Cable		Appelez-nous	-
*17691	G169873		Sound Tap		Appelez-nous	-
*17691	G189383		Hot Tube Repair Kit		Appelez-nous	-
*17691	G166062-01		Harness-compressor		Appelez-nous	-
*17692	G103457		Sleeve-connector		Appelez-nous	-
*17692	G187009		Screw-clamp		Appelez-nous	-
24A	G88088		Clamp (non-illustrated)		Appelez-nous	-
24B	G187009		Screw-clamp (non-illustrated)		Appelez-nous	-
3A	G164820		Washer (ext Tooth Lock) (non-illustrated)		Appelez-nous	-
3B	G160578		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
