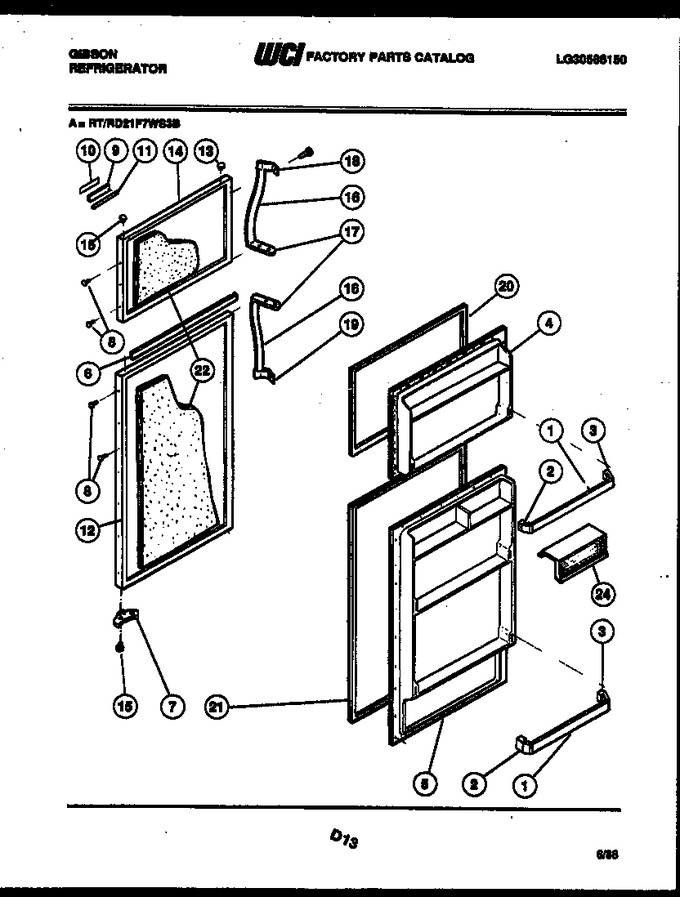

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G162887-20		Door Rack (4)		Appelez-nous	-
2	G152887-04		Support Ls (4)		Appelez-nous	-
3	G152888-04		Support Rs (4)		Appelez-nous	-
4	G186267-01		Inner Panel-freezer		Appelez-nous	-
5	G186266-01		Inner Panel-refrigerator		Appelez-nous	-
6	G167150-12		Trim-refrigerator Door		Appelez-nous	-
7	G155072		Door Stop-refrigerator		Appelez-nous	-
8	G162977-01		Button Plug-white		Appelez-nous	-
8	G162977-08		Button Plug-avocado		Appelez-nous	-
8	G162977-11		Button Plug-almond		Appelez-nous	-
8	G162977-10		Button Plug-coffee		Appelez-nous	-
8	G162977-09		Button Plug-wheat		Appelez-nous	-
9	G175117-02		Nameplate-frame		Appelez-nous	-
10	G188378-02		Label, Upper		Appelez-nous	-
11	G153407-60		Tape-mounting		Appelez-nous	-
12	G186284-11		Refrigerator Door-almond		Appelez-nous	-
12	G186284-09		Refrigerator Door-wheat		Appelez-nous	-
12	G186284-10		Refrigerator Door-coffee		Appelez-nous	-
12	G186284		Refrigerator Door-white		Appelez-nous	-
12	G186284-08		Refrigerator Door-avocado		Appelez-nous	-
13	G169332-08		Button Plug-avocado		Appelez-nous	-
13	G169332-01		Button Plug, White		Appelez-nous	-
13	G169332-11		Button Plug, Almond		Appelez-nous	-
13	G169332-10		Button-plug, Coffee		Appelez-nous	-
13	G169332-09		Button Plug, Wheat		Appelez-nous	-
14	G186279-10		Freezer Door-coffee		Appelez-nous	-
14	G186279-09		Freezer Door-wheat		Appelez-nous	-
14	G186279-11		Freezer Door-almond		Appelez-nous	-
14	G186279		Freezer Door-white		Appelez-nous	-
14	G186279-08		Freezer Door-avocado		Appelez-nous	-
15	G183138		Bearing Hinge (8)		Appelez-nous	-
16	G170495-26		Handle Grip (2)		Appelez-nous	-
17	G187329-01		Handle End (2)		Appelez-nous	-
18	G179800		Handle End-top		Appelez-nous	-
19	G179801		Handle End-bottom		Appelez-nous	-
20	G186932-14		Gasket-freezer Door		Appelez-nous	-
21	G186932-13		Gasket-refrigerator Door		Appelez-nous	-
22	G89643		Insulation (bulk)		Appelez-nous	-
23	G178500-17		Dairy Door (2)		Appelez-nous	-
10A	G176878-01		Label-lower		Appelez-nous	-
19A	G185566		Screw		Appelez-nous	-
4A	G162585		Screw		Appelez-nous	-
5A	G162585		Screw		Appelez-nous	-
7A	G155072		Door Stop-freezer (non-illustrated)		Appelez-nous	-
7B	G185566		Screw		Appelez-nous	-
