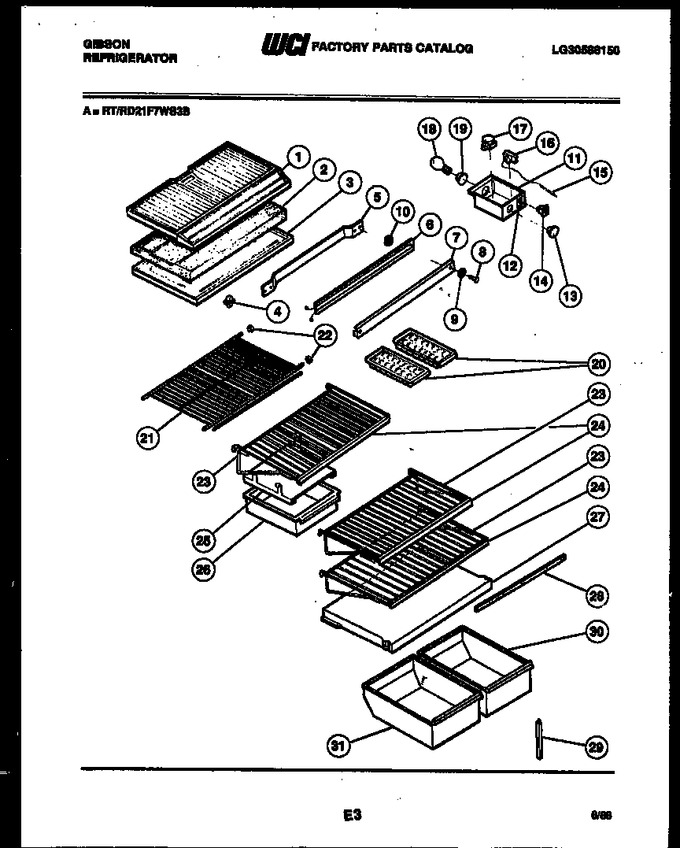

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G184604 | Freezer Bottom |
|
- | |||||
| 2 | G184683 | Divider-foam |
|
- | |||||
| 3 | 3001651 | Refrigerator Top |
|
- | |||||
| 4 | G162672 | Light Switch |
|
- | |||||
| 5 | G490087 | Strap, Mullion Mounting |
|
- | |||||
| 6 | G177254 | Heater, Mullion |
|
- | |||||
| 7 | G180373-09 | Mullion Wheat |
|
- | |||||
| 7 | G180373-08 | Mullion, Avocado |
|
- | |||||
| 7 | G180373-10 | Mullion Coffee |
|
- | |||||
| 7 | G180373-11 | Mullion Almond |
|
- | |||||
| 7 | G180373-01 | Mullion, White |
|
- | |||||
| 8 | G183103 | Screw-mullion Mounting |
|
- | |||||
| 9 | G166847 | Washer-steel (4) |
|
- | |||||
| 10 | G490082 | Spacer-steel (2) |
|
- | |||||
| 11 | G174765-03 | Control Box |
|
- | |||||
| 12 | G185865 | Label - Control Box |
|
- | |||||
| 13 | G174759-01 | Knob-temp Control |
|
- | |||||
| 14 | G178402-05 | Switch-energy Saver |
|
- | |||||
| 15 | G142176-11 | Tube Plastic |
|
- | |||||
| 16 | G162205-11 | Control, Temperature |
|
- | |||||
| 17 | G187484 | Timer-defrost |
|
- | |||||
| 18 | G165723 | Light Bulb |
|
- | |||||
| 19 | G168302 | Light Socket |
|
- | |||||
| 20 | G156376-01 | Ice Tray (2) |
|
- | |||||
| 21 | G177059-07 | Shelf-freezer |
|
- | |||||
| 22 | G166495-01 | End Cap (2) |
|
- | |||||
| 23 | G177390-18 | Shelf-refrigerator (3) |
|
- | |||||
| 24 | G172410-02 | Trim-shelf (3) |
|
- | |||||
| 25 | G177106-01 | Cover, Meat Pan |
|
- | |||||
| 26 | G176918-15 | Meat Pan |
|
- | |||||
| 27 | G490064-08 | Cover-crisper Pan |
|
- | |||||
| 28 | G180108-04 | Gasket, Cover |
|
- | |||||
| 29 | G166310-02 | Support, Cover |
|
- | |||||
| 30 | G176639-16 | Pan-large Rs |
|
- | |||||
| 31 | G490015-34 | Pan-small Ls |
|
- | |||||
| 16A | G107080 | Screw |
|
- | |||||
| 17A | G105289 | Screw |
|
- | |||||
| 3A | G162673 | Screw-top Mounting (3) (non-illustrated) |
|
- | |||||
| 3B | G184904 | Wiring Harness-divider (non-illustrated) |
|
- |
