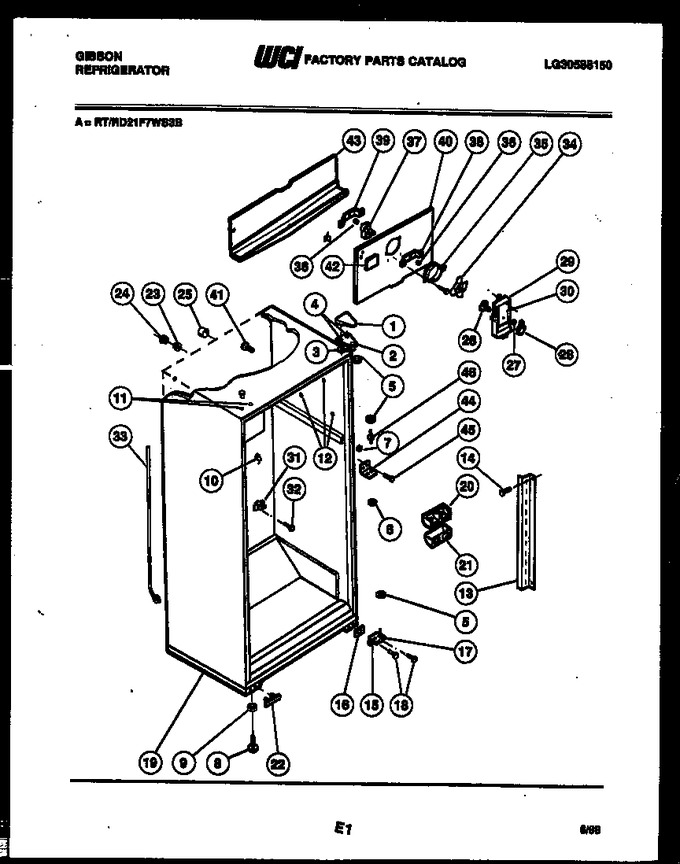

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183558-11 | Hinge Cover-almond |
|
- | |||||
| 1 | G183558-01 | Hinge Cover-white |
|
- | |||||
| 1 | G183558-08 | Hinge Cover-avocado |
|
- | |||||
| 1 | G183558-09 | Hinge Cover-wheat |
|
- | |||||
| 1 | G183558-10 | Hinge Cover Coffee |
|
- | |||||
| 2 | G183714 | Hinge-top |
|
- | |||||
| 3 | G183861 | Shim Top Hinge |
|
- | |||||
| 4 | G167103 | Screw-hinge Mtg (2) |
|
- | |||||
| 5 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 6 | G164355 | Washer (nylon) |
|
- | |||||
| 7 | G490082 | Spacer, Mullion (2) |
|
- | |||||
| 8 | G185713 | Leveling Screw (2) |
|
- | |||||
| 9 | G183073 | Anchor Nut (2) |
|
- | |||||
| 10 | G179684-09 | Corner Trim-wheat |
|
- | |||||
| 10 | G179684-11 | Corner Trim-almond |
|
- | |||||
| 10 | G179684-01 | Corner Trim-white |
|
- | |||||
| 10 | G179684-08 | Corner Trim-avocado |
|
- | |||||
| 10 | G179684-10 | Corner Trim-coffee |
|
- | |||||
| 11 | G174747-01 | Button-plug-white |
|
- | |||||
| 11 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 11 | G174747-10 | Plug-button, Coffee |
|
- | |||||
| 11 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 11 | G174747-08 | Button, Plug, Avocado |
|
- | |||||
| 12 | G167565 | Grommet-shelf-rs (4) |
|
- | |||||
| 13 | G170695 | Channel, Rs & Ls |
|
- | |||||
| 14 | G166567 | Screw-channel Mounting (6) |
|
- | |||||
| 15 | G191474 | Bracket-bottom Hinge |
|
- | |||||
| 16 | G163203 | Shim-bottom Hinge |
|
- | |||||
| 17 | G166505 | Pin-bottom Hinge |
|
- | |||||
| 18 | G181020 | Screw-hinge Mtg (2) |
|
- | |||||
| 19 | G490004-02 | Cabinet Base |
|
- | |||||
| 20 | G162675 | Air Deflector-foam |
|
- | |||||
| 21 | G162178 | Cover, Deflector |
|
- | |||||
| 22 | G166912 | Plug-hinge Hole |
|
- | |||||
| 23 | G174733 | Ferrule, Inner |
|
- | |||||
| 24 | G174734 | Ferrule Outer |
|
- | |||||
| 25 | G85642 | Tube, Rubber |
|
- | |||||
| 26 | G162661 | Damper Fan Cover |
|
- | |||||
| 27 | G162662 | Push-nut |
|
- | |||||
| 28 | G168702 | Knob-damper Control |
|
- | |||||
| 29 | G162512-08 | Cover-fan |
|
- | |||||
| 30 | G185863 | Label - Upper |
|
- | |||||
| 30 | G185864 | Label - Lower |
|
- | |||||
| 31 | G162179 | Drain Spout |
|
- | |||||
| 32 | G185279 | Push Pin (2) |
|
- | |||||
| 33 | G184920-01 | Drain Tube |
|
- | |||||
| 34 | G174705 | Fan Blade |
|
- | |||||
| 35 | G167217 | Orifice Ring |
|
- | |||||
| 36 | G157666 | Bushing-motor (2) |
|
- | |||||
| 37 | G158289 | Fan Motor |
|
- | |||||
| 38 | G185302 | Bracket-front |
|
- | |||||
| 39 | G185303 | Bracket-rear |
|
- | |||||
| 40 | G184609 | Cover-evaporator Coil |
|
- | |||||
| 41 | G163669 | Support, Coil Cover (2) |
|
- | |||||
| 42 | G162827-12 | Plug-decorative |
|
- | |||||
| 43 | G177534 | Drain Trough |
|
- | |||||
| 44 | G163207 | Bracket-center Hinge |
|
- | |||||
| 45 | G183103 | Screw-hinge Mtg (4) |
|
- | |||||
| 46 | G142220 | Pin |
|
- | |||||
| *10705 | G187599 | Plug-freezer Liner (5) |
|
- | |||||
| *10705 | G162892-01 | Plug-refrigerator Liner (2) |
|
- | |||||
| 12A | G176993 | Grommet-shelf Ls (4) (non-illustrated) |
|
- | |||||
| 15A | G179797 | Tapping Plate (2) (non-illustrated) |
|
- | |||||
| 29A | G187363 | Screw |
|
- | |||||
| 2A | G179797 | Tapping Plate (2) (non-illustrated) |
|
- | |||||
| 33A | G176853 | Seal Ring-tube (non-illustrated) |
|
- | |||||
| 39A | G164571 | Connector-rear Bracket (non-illustrated) |
|
- | |||||
| 39B | G162585 | Screw |
|
- | |||||
| 40A | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 42A | G191558 | Plug-short Tst Hole (non-illustrated) |
|
- | |||||
| 45A | G166847 | Washer-steel (4) (non-illustrated) |
|
- |
