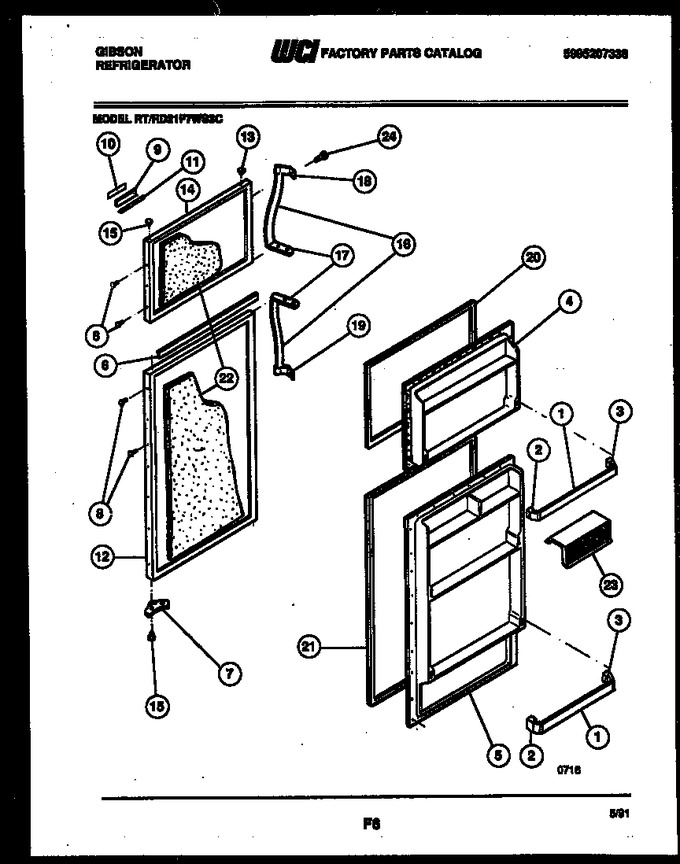

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5316288720		Door Rack (4)		Appelez-nous	-
2	5315288704		Support Lh (4)		Appelez-nous	-
3	5315288804		Support Rh (4)		Appelez-nous	-
4	G18626701		Inner Panel-freezer		Appelez-nous	-
5	G186266-01		Inner Panel-refrigerator		Appelez-nous	-
6	5303270464		Trim-refrigerator Door		Appelez-nous	-
7	5303212491		Door Stop, Refrigerator		Appelez-nous	-
8	240494001		Plug, Handle, White   (Replaces: 5308000090)			Immediately	$ 18.20
8	5308000179		Plug-handle-avocado		Appelez-nous	-
8	5308000181		Plug, Handle, Almond		Appelez-nous	-
8	5308000178		Plug, Handle, Coffee		Appelez-nous	-
8	5308000180		Plug, Handle, Wheat		Appelez-nous	-
9	5317511702		Nameplate - Frame		Appelez-nous	-
10	5318837802		Label Upper		Appelez-nous	-
11	G153407-60		Tape-mounting		Appelez-nous	-
12	G186284-11		Refrigerator Door-almond		Appelez-nous	-
12	G186284-09		Refrigerator Door-wheat		Appelez-nous	-
12	G186284-10		Refrigerator Door-coffee		Appelez-nous	-
12	G186284		Refrigerator Door-white		Appelez-nous	-
12	G186284-08		Refrigerator Door-avocado		Appelez-nous	-
13	5308000175		Plug-hinge-avocado		Appelez-nous	-
13	5308000134		Plug, Hinge, White				$ 5.62
13	5303001308		Plug, Hinge, Almond		Appelez-nous	-
13	5303001657		Plug-hinge, Coffee		Appelez-nous	-
13	5308000176		Plug, Hinge, Wheat		Appelez-nous	-
14	G186279-10		Freezer Door-coffee		Appelez-nous	-
14	G186279-09		Freezer Door-wheat		Appelez-nous	-
14	G186279-11		Freezer Door-almond		Appelez-nous	-
14	G186279		Freezer Door-white		Appelez-nous	-
14	G186279-08		Freezer Door-avocado		Appelez-nous	-
15	5308012007		Bearing, Hinge (8)		Appelez-nous	-
16	5317049526		Handle Grip (2)		Appelez-nous	-
17	5303001296		Handle End, (2)				$ 86.36
18	5303001297		Handle End Top				$ 70.22
19	5303001295		Handle - End Bottom		Appelez-nous	-
20	5308016617		Gasket-freezer Door		Appelez-nous	-
21	5308015544		Gasket Refrigerator Door		Appelez-nous	-
22	5303007739		Insulation, Bulk		Appelez-nous	-
23	G178500-17		Dairy Door (2)		Appelez-nous	-
24	5308011745		Screw				$ 10.38
10A	3201688		Label-lower		Appelez-nous	-
4A	5308002748		Screw		Appelez-nous	-
5A	5308002748		Screw		Appelez-nous	-
7A	5308000255		Door Stop-freezer (non-illustrated)				$ 42.20
7B	G185566		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
