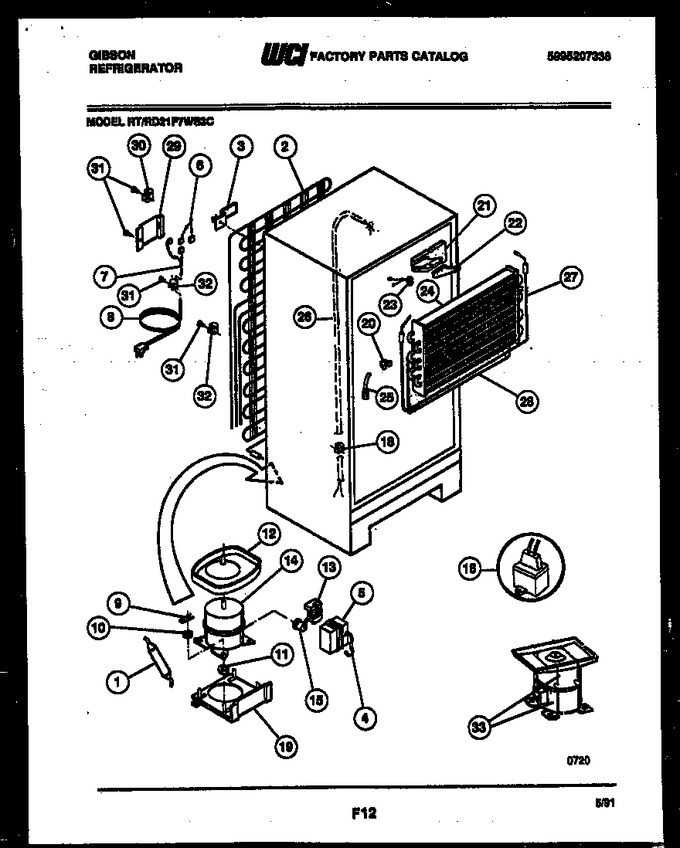

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
2	530163133		Condenser		Appelez-nous	-
3	5303001342		Bracket-mounting (4)		Appelez-nous	-
4	5303006412		Strap-terminal Cover		Appelez-nous	-
5	5303006411		Cover, Terminal		Appelez-nous	-
6	3001475		Harness-divider		Appelez-nous	-
7	5303001347		Harness-compressor		Appelez-nous	-
8	5316254901		Service Cord		Appelez-nous	-
9	5308003596		Clip, Mounting (4)				$ 6.62
10	5308003633		Washer, Mounting (4)				$ 35.67
11	5308008778		Grommet, Mounting (4)		Appelez-nous	-
12	5300184715		Defrost Pan & Nut		Appelez-nous	-
13	5303007173		Relay				$ 207.43
14	5303916012		Compressor W/ Electricals		Appelez-nous	-
15	5308017532		Overload		Appelez-nous	-
16	5303916391		Capacitor-run Kit		Appelez-nous	-
18	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
19	5308013663		Plate, Compressor Mounting		Appelez-nous	-
20	5308017227		Insulation Block, Lh		Appelez-nous	-
21	5308013648		Insulation Block, Rh		Appelez-nous	-
22	5303007287		Insulation Plug, Rh		Appelez-nous	-
23	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
24	5303271578		Evaporator Coil		Appelez-nous	-
25	5308000110		Strap, Evaporator			Immediately	$ 59.82
26	5308000728		Heat Exchanger		Appelez-nous	-
27	5317842502		Heater-defrost				$ 133.96
28	5316651102		Insulator-evaporator				$ 53.04
29	5303001197		Cover-wiring		Appelez-nous	-
30	5303001199		Clamp				$ 65.92
33	G167234		Pan Retainer Kit		Appelez-nous	-
12A	5303001348		Lock Nut-pan				$ 2.73
18A	5308000039		Screw		Appelez-nous	-
33A	5308017610		Sound Tape		Appelez-nous	-
33B	5300189383		Hot Tube Repair Kit				$ 613.15
3A	5308000039		Screw		Appelez-nous	-
3B	5308009617		Washer Ext Tooth (non-illustrated)		Appelez-nous	-
