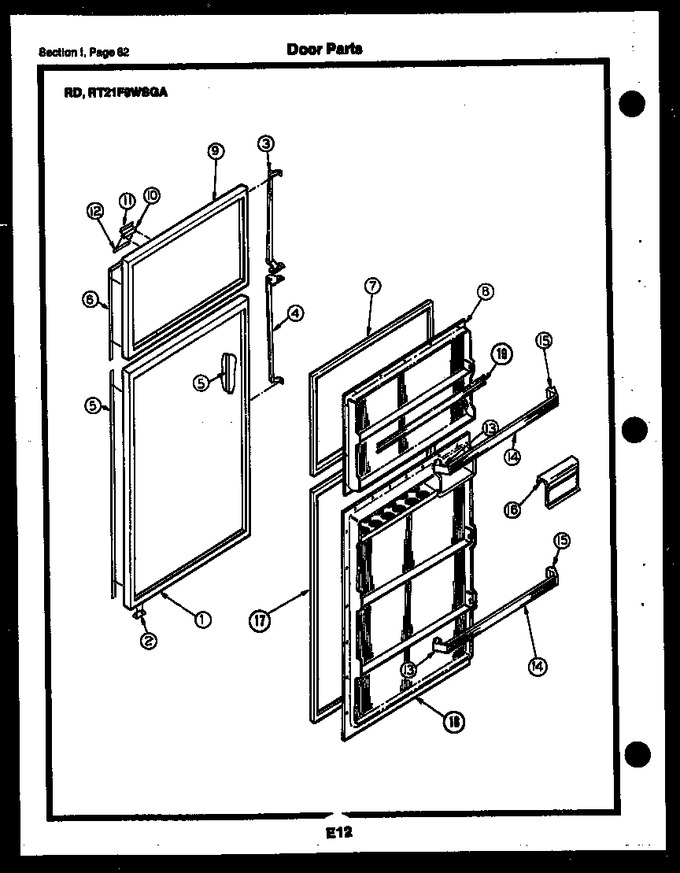

31 - Door Parts
32 - Cabinet Parts
33 - Cabinet Parts
34 - Cabinet Parts
35 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G169134 | Panel - Exterior Door |
|
- | |||||
| 2 | G155072 | Stop, Door (2) |
|
- | |||||
| 3 | G168506-01 | Handle - Freezer Door |
|
- | |||||
| 4 | G168505-01 | Handle - Refrigerator Door |
|
- | |||||
| 5 | G167150-03 | Trim - Refrigerator Door Side (2) |
|
- | |||||
| 6 | G167404-05 | Trim Assembly - Freezer |
|
- | |||||
| 7 | G180547-08 | Gasket - Freezer Door |
|
- | |||||
| 8 | G163004-02 | Panel - Interior Door |
|
- | |||||
| 9 | G169136 | Panel - Exterior Door |
|
- | |||||
| 10 | G175117-02 | Nameplate |
|
- | |||||
| 11 | G175118-02 | Label, Nameplate, Upper |
|
- | |||||
| 12 | G175393-01 | Label, Lower |
|
- | |||||
| 13 | G152887-04 | Support - L.h. (4) Ref. And Frz. Racks |
|
- | |||||
| 14 | G164137-19 | Rack - Doors (2) |
|
- | |||||
| 15 | G152888-04 | Support - R.h. (4) Ref. And Frz. Racks |
|
- | |||||
| 16 | G162855-58 | Door - Compartment |
|
- | |||||
| 17 | G180547-09 | Gasket - Refrigerator Door |
|
- | |||||
| 18 | G163025-02 | Panel - Interior Door |
|
- | |||||
| 19 | G164137-26 | Rack - Freezer (2) Doors |
|
- | |||||
| *22405 | G169332-01 | Button Plug, White |
|
- | |||||
| *22406 | G162977-01 | Button Plug-white |
|
- | |||||
| *22407 | G168981-01 | Door Conversion Package |
|
- | |||||
| 13A | G141624-04 | Tape, Frame To Door |
|
- | |||||
| 18A | G162585 | Screw |
|
- | |||||
| 1A | G183138 | Bearing, Hinge (4) |
|
- | |||||
| 4A | G182566 | Screw - 10-24 X 5/8 (8) |
|
- | |||||
| 8A | G162585 | Screw |
|
- | |||||
| 9A | G183138 | Bearing, Hinge (4) |
|
- |
