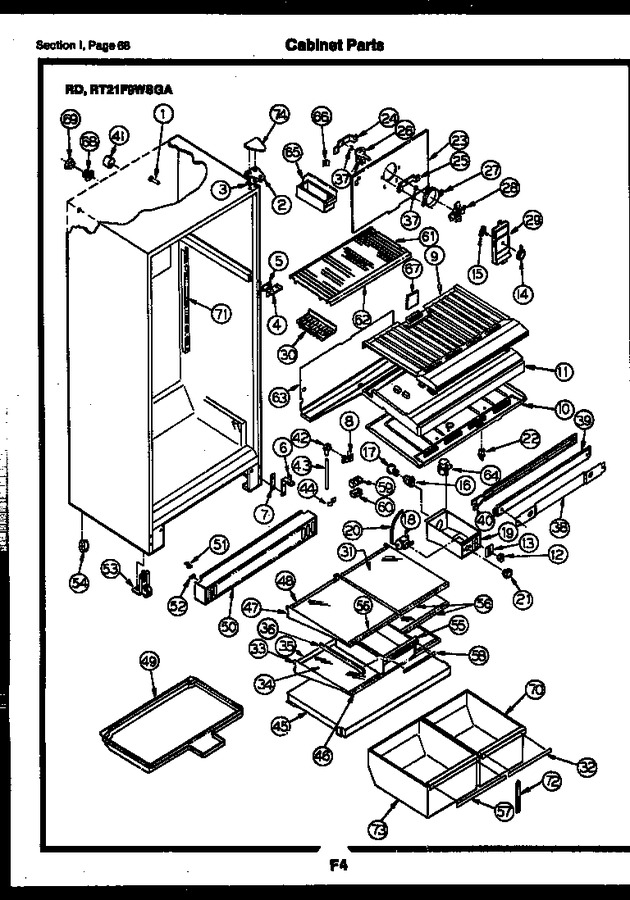

31 - Door Parts


32 - Cabinet Parts


33 - Cabinet Parts


34 - Cabinet Parts


35 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
57	G177343-08		Trim - Crisper Pan		Appelez-nous	-
58	G177343-10		Trim - Meat Pan		Appelez-nous	-
59	G162675		Deflector Air		Appelez-nous	-
60	G162178		Cover, Air Deflector		Appelez-nous	-
61	G163002-06		Shelf - Freezer		Appelez-nous	-
62	G141727-29		Trim - Freezer Shelf		Appelez-nous	-
63	G170071		Trough Drain		Appelez-nous	-
64	G174820		Timer (non-illustrated)		Appelez-nous	-
65	G163022-03		Container, Ice		Appelez-nous	-
66	G164571		Bracket, Connector		Appelez-nous	-
67	G168866		Pad, Foam (2)		Appelez-nous	-
68	G174733		Ferrule, Inner		Appelez-nous	-
69	G174734		Ferrule Outer		Appelez-nous	-
70	G179706-29		Pan - Crisper		Appelez-nous	-
71	G170695		Channel - Shelves (2)		Appelez-nous	-
72	G166310-01		Support, Crisper Cover		Appelez-nous	-
73	G179706-30		Pan - Crisper		Appelez-nous	-
74	G183558-01		Cover - Top Hinge		Appelez-nous	-
*22602	G162659		Button - Plug (6) Ice Maker And Freezer Shelf Mounting H		Appelez-nous	-
*22607	G162827-12		Button, Decorative Plug		Appelez-nous	-
*22610	G142625		Button - Plug Water Inlet Hole		Appelez-nous	-
*22612	G161046		Button - Plug - Ice Maker Harness Hole		Appelez-nous	-
*22613	G176588		Harness, Wiring		Appelez-nous	-
*22615	G162891-01		Button - Plug Liner Holes (2)		Appelez-nous	-
*22616	G175254		Book - Instruction		Appelez-nous	-
*22621	G184337		Sheet - Service Data		Appelez-nous	-
*22622	G183100-40		Label-energy Guide		Appelez-nous	-
61A	G163105		Support, Shelf (8)		Appelez-nous	-
61B	G163104		Screw - Support To Liner (8)		Appelez-nous	-
62A	G138399		Clip - Trim (3)		Appelez-nous	-
64A	G105289		Screw		Appelez-nous	-
66A	G162585		Screw		Appelez-nous	-
71A	G163989		Screw - 8 X 1 (3)		Appelez-nous	-
71B	G175612		Channel - Center Mtg.		Appelez-nous	-
71C	G166567		Screw - Channels (6)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
