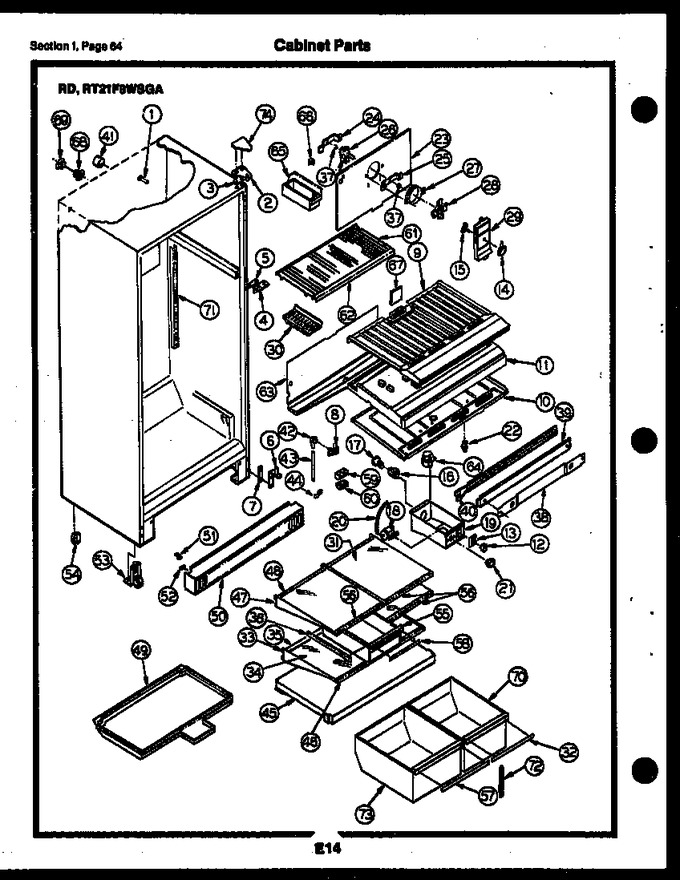

31 - Door Parts
32 - Cabinet Parts
33 - Cabinet Parts
34 - Cabinet Parts
35 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G163669 | Support, Coil Cover (2) |
|
- | |||||
| 2 | G183714 | Bracket, Hinge Top |
|
- | |||||
| 3 | G183861 | Shim, Upper Hinge |
|
- | |||||
| 4 | G162384 | Bracket-center Hinge |
|
- | |||||
| 5 | G162683 | Shim-center Hinge |
|
- | |||||
| 6 | G162383 | Bracket-lower Hinge |
|
- | |||||
| 7 | G162903 | Shim-lower Hinge |
|
- | |||||
| 8 | G162179 | Spout Drain Tube |
|
- | |||||
| 9 | G174744 | Bottom - Freezer |
|
- | |||||
| 10 | G174757 | Top - Refrigerator |
|
- | |||||
| 11 | G174758 | Divider - Compartment |
|
- | |||||
| 12 | G177727-05 | Switch - Slide (non-illustrated) |
|
- | |||||
| 13 | G185865 | Label - Control Box |
|
- | |||||
| 14 | G162747-06 | Knob - Damper Control |
|
- | |||||
| 15 | G162661 | Damper Fan Cover |
|
- | |||||
| 16 | G168302 | Socket Light |
|
- | |||||
| 17 | G25806 | Bulb Light |
|
- | |||||
| 18 | G162667-10 | Control - Thermostat (non-illustrated) |
|
- | |||||
| 19 | G174765-03 | Box, Control |
|
- | |||||
| 20 | G142176-11 | Tube Plastic |
|
- | |||||
| 21 | G174759-01 | Knob, Control |
|
- | |||||
| 22 | G162672 | Switch - Light (non-illustrated) |
|
- | |||||
| 23 | G162050-02 | Cover, Coil |
|
- | |||||
| 24 | G162048 | Bracket, Rear Motor Mounting |
|
- | |||||
| 25 | G162049 | Bracket, Front Motor Mounting |
|
- | |||||
| 10A | G162673 | Screw - Top (5) |
|
- | |||||
| 13A | G168701 | Label - Damper Control Knob |
|
- | |||||
| 15A | G162662 | Nut, Damper Mounting |
|
- | |||||
| 18A | G107080 | Screw |
|
- | |||||
| 19A | G163980 | Screw - Box |
|
- | |||||
| 23A | G183147 | Screw, Cover (4) |
|
- | |||||
| 25A | G163980 | Screw - Brackets (2) |
|
- | |||||
| 2A | G174747-01 | Button-plug-white |
|
- | |||||
| 2B | G101970 | Washer, Nylon |
|
- | |||||
| 2B | G170156 | Washer, Nylon |
|
- | |||||
| 4A | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 4B | G142220 | Pin |
|
- | |||||
| 4C | G164355 | Washer (nylon) |
|
- | |||||
| 6A | G141673 | Nut |
|
- | |||||
| 6B | G142361 | Pin |
|
- | |||||
| 6C | G77210 | Nut, Speed (2) |
|
- | |||||
| 6D | G157591 | Plate, Tapping (2) |
|
- | |||||
| 6E | G99167 | Screw - Bracket (2) |
|
- | |||||
| 8A | G185279 | Pin Push (2) |
|
- | |||||
| 9A | G168866 | Pad Foam |
|
- |
