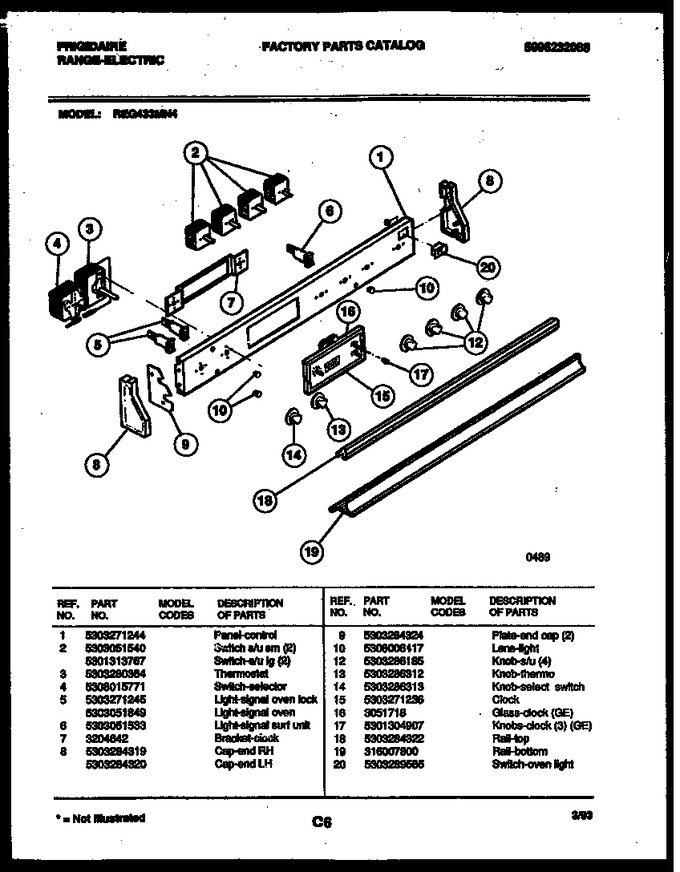

02 - Control Panel


03 - Cooktop And Broiler Parts


04 - Door Parts


05 - Body Parts


06 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303271244		Panel-control		Appelez-nous	-
2	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
3	5303280364		Thermostat		Appelez-nous	-
4	5308015771		Switch-selector		Appelez-nous	-
5	5303271245		Light-signal Oven Lock		Appelez-nous	-
6	5303051533		Light-signal Surf Unit				$ 53.81
7	3204642		Bracket-clock		Appelez-nous	-
8	5303284319		Cap-end Rh		Appelez-nous	-
9	5303284324		Plate-end Cap (2)		Appelez-nous	-
10	5308006417		Lens-light				$ 19.06
12	5303286185		Knob-s/u (4)		Appelez-nous	-
13	5303286312		Knob-thermo		Appelez-nous	-
14	5303286313		Knob-select Switch		Appelez-nous	-
15	5303271236		Clock		Appelez-nous	-
16	3051718		Glass-clock (g.e.)		Appelez-nous	-
17	5301304907		Knobs-clock (3) (ge)		Appelez-nous	-
18	5303284322		Rail-top		Appelez-nous	-
19	316007800		Rail-bottom		Appelez-nous	-
20	5303289585		Switch-oven Light		Appelez-nous	-
2A	5301313767		Switch-s/u Lg. (2)		Appelez-nous	-
5A	5303051849		Light-signal Oven		Appelez-nous	-
8A	5303284320		Cap-end Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
