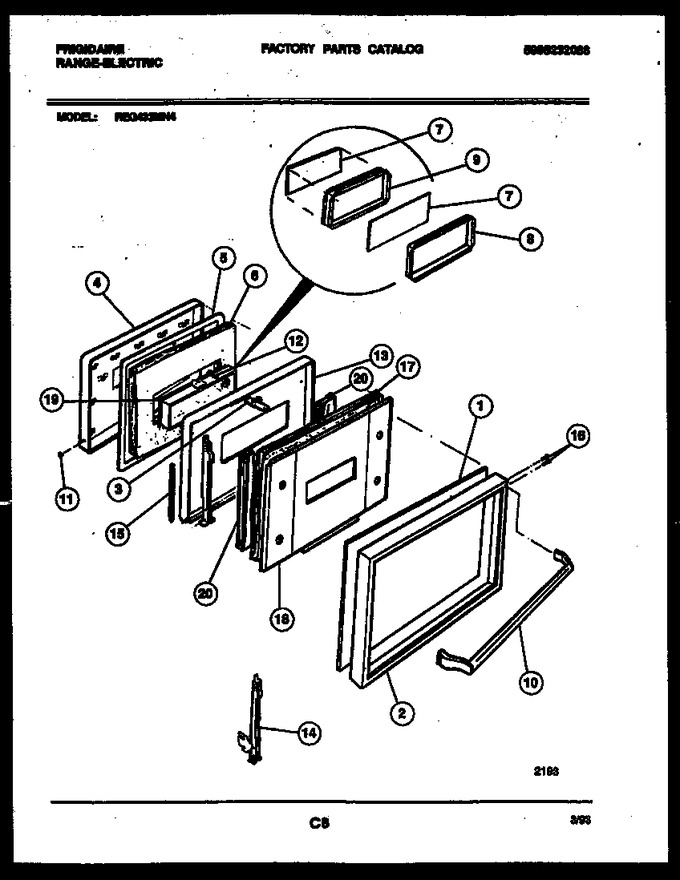

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012546 | Glass, Outer |
|
- | |||||
| 2 | 5303206826 | Frame-door |
|
- | |||||
| 3 | 5301167830 | Strike |
|
- | |||||
| 4 | 5303293391 | Baffle |
|
- | |||||
| 5 | 5303051704 | Gasket - Oven Door |
|
$ 388.08 | |||||
| 6 | 5303269528 | Insulation-baffle |
|
- | |||||
| 7 | 5303209512 | Glass Heat Barrier (2) |
|
$ 150.41 | |||||
| 8 | 5303269564 | Collar-glass Weldment |
|
- | |||||
| 9 | 5303269679 | Spacer-glass |
|
- | |||||
| 10 | 5303207187 | Handle |
|
- | |||||
| 11 | 3051807 | Button, Plug (2) |
|
- | |||||
| 12 | 5303292012 | Screw 10-24 X 5/8 |
|
- | |||||
| 13 | 5303293392 | Liner-door |
|
- | |||||
| 14 | 5303210232 | Door Hinge Assy |
|
- | |||||
| 15 | 08003264 | Spring-oven Door |
|
- | |||||
| 16 | 5303051860 | Screw, Handle (4) |
|
- | |||||
| 17 | 5303269529 | Insulation-airwash |
|
- | |||||
| 18 | 5303269570 | Panel, Airwash |
|
- | |||||
| 19 | 5303269535 | Gasket-glass |
|
- | |||||
| 20 | 5303269530 | Insulation, Airwash (2) |
|
- |
