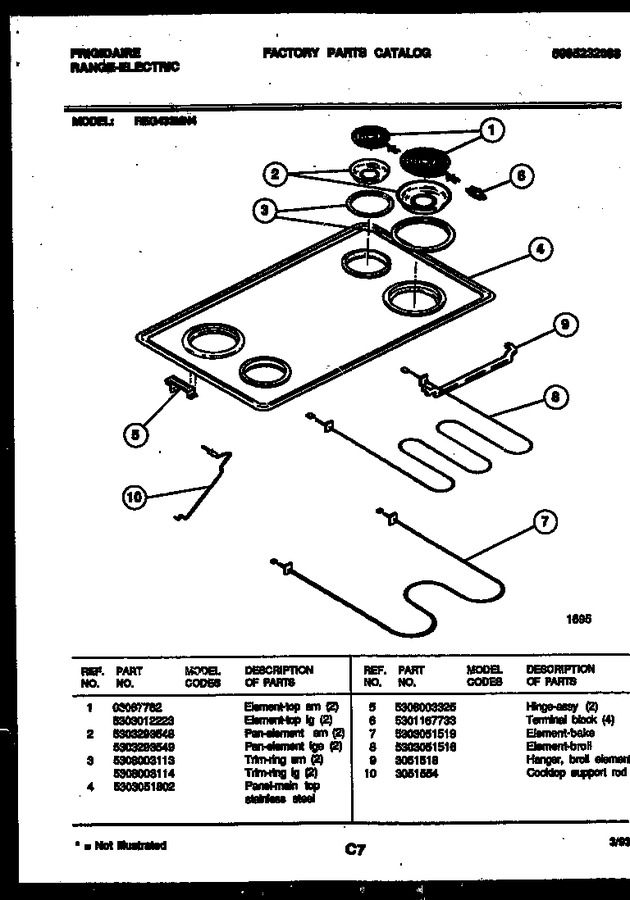

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318372211 | Element-top-sm (2) (Replaces: 08067762) |
|
Immediately | $ 45.14 | ||||
| 2 | 5303293548 | Pan-element Sm (2) |
|
- | |||||
| 3 | 5308003113 | Trim-ring Sm (2) |
|
- | |||||
| 4 | 5303051802 | Panel-main Top Stainless Steel |
|
- | |||||
| 5 | 5308003325 | Hinge Assy (2) |
|
- | |||||
| 6 | 5303935058 | Terminal Block (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 7 | 5303051519 | Element-bake |
|
Immediately | $ 44.70 | ||||
| 8 | 5303051516 | Element-broil |
|
$ 189.23 | |||||
| 9 | 3051518 | Hanger, Broil Element |
|
- | |||||
| 10 | 3051554 | Cooktop Support Rod |
|
- | |||||
| 1A | 316442301 | Element-top Lg (2) (Replaces: 5303012223) |
|
Immediately | $ 44.39 | ||||
| 2A | 5303293549 | Pan-element Lge (2) |
|
- | |||||
| 3A | 5308003114 | Trim-ring Lg (2) |
|
- |
