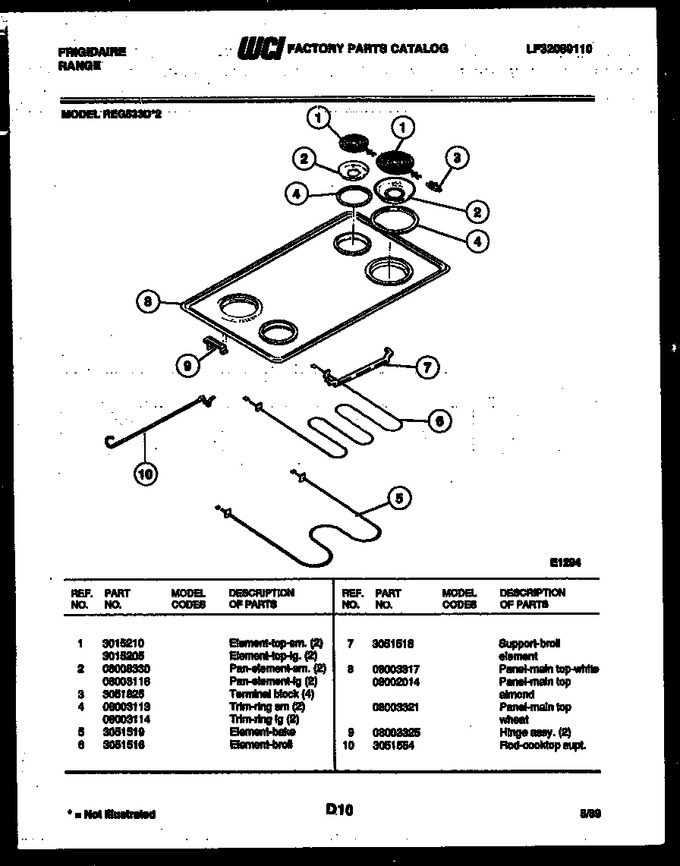

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015210 | Element-top-sm. (2) |
|
- | |||||
| 2 | 08008330 | Pan-element-sm. (2) |
|
- | |||||
| 3 | 3051825 | Terminal Block (4) |
|
- | |||||
| 4 | 08003113 | Trim-ring Sm (2) |
|
- | |||||
| 5 | 3051519 | Element - Bake |
|
- | |||||
| 6 | 3051516 | Element - Broil |
|
- | |||||
| 7 | 3051518 | Support Broil Element |
|
- | |||||
| 8 | 08002014 | Panel-main Top Almond |
|
- | |||||
| 8 | 08003321 | Panel-main Top Wheat |
|
- | |||||
| 8 | 08003317 | Panel-main Top-white |
|
- | |||||
| 9 | 08003325 | Hinge Assy. (2) |
|
- | |||||
| 10 | 3051554 | Rod-cooktop Supt. |
|
- | |||||
| 1A | 3015205 | Element-top-lg. (2) |
|
- | |||||
| 2A | 08003116 | Pan-element-lg (2) |
|
- | |||||
| 4A | 08003114 | Trim-ring Lg (2) |
|
- |
