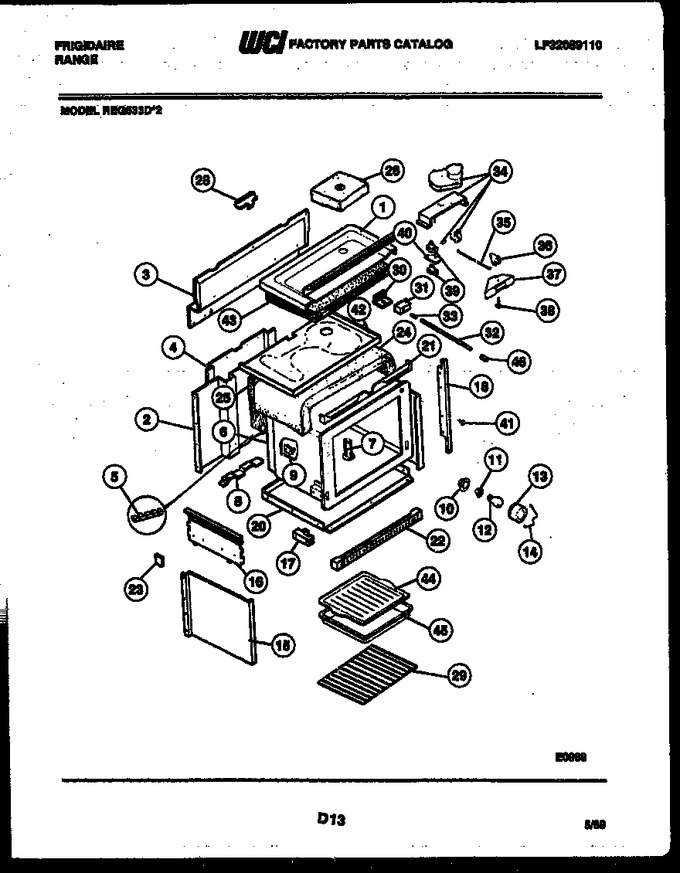

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051553 | Panel-subtop |
|
- | |||||
| 2 | 3204649 | Back, Range |
|
- | |||||
| 3 | 08008689 | Back-range Upper |
|
- | |||||
| 4 | 3204650 | Cover, Wire |
|
- | |||||
| 5 | 3161116 | Terminal Block |
|
- | |||||
| 7 | 3051773 | Tube-vent Assy |
|
- | |||||
| 8 | 3203574 | Plate-mtg |
|
- | |||||
| 9 | 3051552 | Bracket-therm Bulb |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 14 | 3051515 | Retainer, Lens |
|
- | |||||
| 15 | 3051526 | Retainer-insul. (2) |
|
- | |||||
| 16 | 08015935 | Panel-side (2) |
|
- | |||||
| 17 | 3051527 | Brkt, Supt. Rh (2) |
|
- | |||||
| 18 | 08003334 | Trim-oven Frnt (2) |
|
- | |||||
| 20 | 3204634 | Retainer, Insul Btm |
|
- | |||||
| 21 | 08008686 | Bracket, Cooktop |
|
- | |||||
| 22 | 08012249 | Grill-bottom |
|
- | |||||
| 23 | 3051827 | Plate, Filler (2) |
|
- | |||||
| 24 | 3051628 | Insulation-wrap |
|
- | |||||
| 25 | 3051630 | Insulation-back |
|
- | |||||
| 26 | 3051523 | Insulation, Vent Tube |
|
- | |||||
| 28 | 3051800 | Brkt, Hng Support |
|
- | |||||
| 29 | 3131973 | Rack-oven |
|
- | |||||
| 30 | 3051643 | Brkt-door Sw. |
|
- | |||||
| 31 | 08003081 | Switch-dr Latch |
|
- | |||||
| 32 | 3051645 | Push Rod-sw. |
|
- | |||||
| 33 | 08007444 | End-push Rod |
|
- | |||||
| 34 | 08015743 | Latch Motor Assy. |
|
- | |||||
| 35 | 3051649 | Tie Bar |
|
- | |||||
| 36 | 3051648 | Latch-door |
|
- | |||||
| 37 | 3015647 | Hsg-door Latch |
|
- | |||||
| 38 | 3051572 | Axle |
|
- | |||||
| 39 | 3051740 | Switch-top |
|
- | |||||
| 40 | 3051861 | Insul.-dr Latch (2) |
|
- | |||||
| 41 | 3051784 | Plug-button |
|
- | |||||
| 42 | 3051782 | Retainer-insul. (top) |
|
- | |||||
| 43 | 3051788 | Insulation, Top |
|
- | |||||
| 44 | 3051562 | Grill-broiler |
|
- | |||||
| 45 | 08005315 | Pan, Broiler |
|
- | |||||
| 46 | 3051251 | Cover, Rod |
|
- | |||||
| *29278 | 3203578 | Plate, Warning |
|
- | |||||
| *29278 | 3203396 | Rivet, Pop |
|
- | |||||
| *29279 | 3051796 | Plug Button (2) |
|
- | |||||
| *29279 | 3051810 | Retainer-door (2) |
|
- | |||||
| 17A | 3051528 | Brkt, Supt Lh (2) |
|
- | |||||
| 29A | 08014219 | Rack, Offset Oven |
|
- | |||||
| 39A | 08006582 | Switch-bottom |
|
- |
