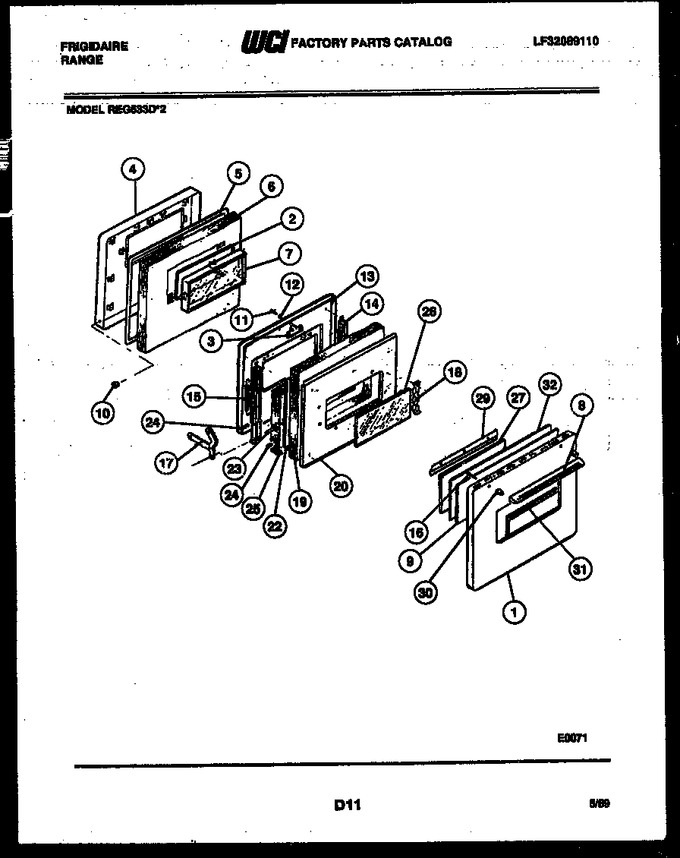

02 - Control Panel
03 - Cooktop And Broiler Parts
04 - Door Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08003222 | Panel-door-almond |
|
- | |||||
| 1 | 08003150 | Panel-door-white |
|
- | |||||
| 1 | 08003225 | Panel-door-wheat |
|
- | |||||
| 2 | 3051706 | Gasket, Window |
|
- | |||||
| 3 | 3051707 | Strike |
|
- | |||||
| 4 | 3051702 | Baffle |
|
- | |||||
| 5 | 3051704 | Gasket |
|
- | |||||
| 6 | 3008673 | Insulation, Baffle |
|
- | |||||
| 7 | 3051705 | Window Assy. |
|
- | |||||
| 8 | 08012552 | Handle |
|
- | |||||
| 9 | 3008605 | Insulation-panel |
|
- | |||||
| 10 | 3051809 | Button-plug (2) |
|
- | |||||
| 11 | 08004957 | Screw 10 X 24 |
|
- | |||||
| 12 | 3051785 | Washer-padded (2) |
|
- | |||||
| 13 | 3017468 | Liner, Door |
|
- | |||||
| 14 | 08012511 | Channel (2) |
|
- | |||||
| 15 | 08003186 | Spring (2) |
|
- | |||||
| 16 | 08003155 | Screw-handle |
|
- | |||||
| 17 | 08003183 | Door-hinge Arm |
|
- | |||||
| 18 | 3204652 | Retainer, Glass (2) |
|
- | |||||
| 19 | 3051711 | Insulation - Airwash |
|
- | |||||
| 20 | 3051712 | Panel, Airwash |
|
- | |||||
| 22 | 3051862 | Foil, Aluminum |
|
- | |||||
| 23 | 08012004 | Axle-hinge (2) |
|
- | |||||
| 24 | 08950070 | Roller Kit (2) |
|
- | |||||
| 25 | 3008677 | Insulation, Liner |
|
- | |||||
| 26 | 3051713 | Glass - Inner |
|
- | |||||
| 27 | 08012512 | Glass-outer |
|
- | |||||
| 28 | 08003151 | Panel-insulator Pad |
|
- | |||||
| 29 | 08003158 | Bracket-mtg. (2) |
|
- | |||||
| 30 | 08003153 | Spacer-handle (2) |
|
- | |||||
| 31 | 3201571 | Moulding-j |
|
- | |||||
| 32 | 08003151 | Panel-insul. Retainer |
|
- |
