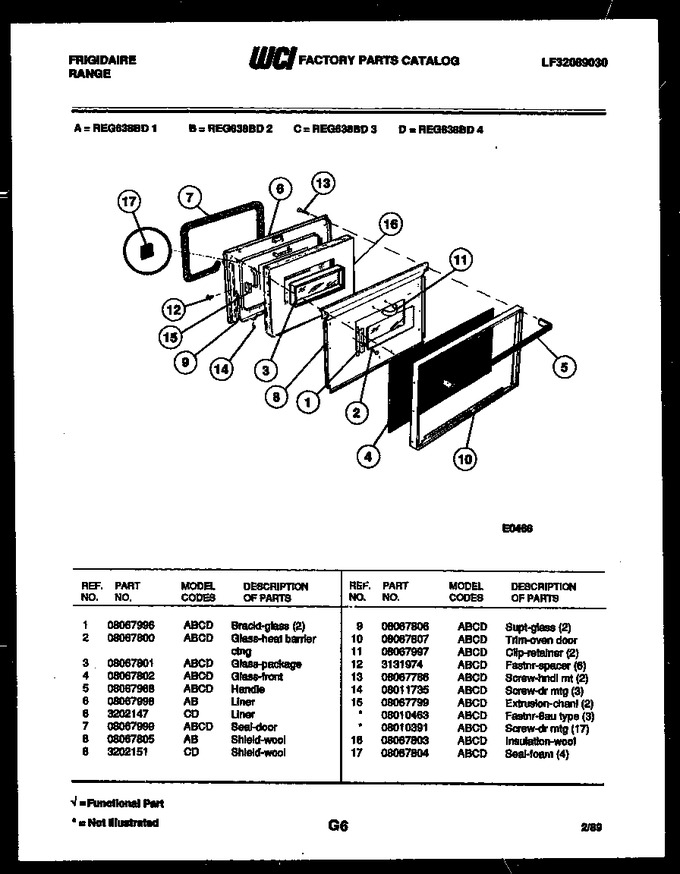

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08067996		Brackt-glass (2)		Appelez-nous	-
2	08067800		Glass-heat Barrier Ctng		Appelez-nous	-
3	08067801		Glass-package		Appelez-nous	-
4	08067802		Glass, Front		Appelez-nous	-
5	08067968		Handle		Appelez-nous	-
6	3202147		Liner		Appelez-nous	-
7	08067999		Seal-door		Appelez-nous	-
8	3202151		Shield, Wool		Appelez-nous	-
9	08067806		Supt-glass (2)		Appelez-nous	-
10	08067807		Trim, Oven Door		Appelez-nous	-
11	08067997		Clip-retainer (2)		Appelez-nous	-
12	3131974		Fastnr-spacer (6)		Appelez-nous	-
13	08067786		Screw-hndl Mt (2)		Appelez-nous	-
14	08011735		Screw-dr Mtg (3)		Appelez-nous	-
15	08067799		Extrusion-chanl (2)		Appelez-nous	-
16	08067803		Insulation, Wool		Appelez-nous	-
17	08067804		Seal, Foam (4)		Appelez-nous	-
15A	08010463		Fastener-clip		Appelez-nous	-
15B	08010391		Screw-dr Mtg (17) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
