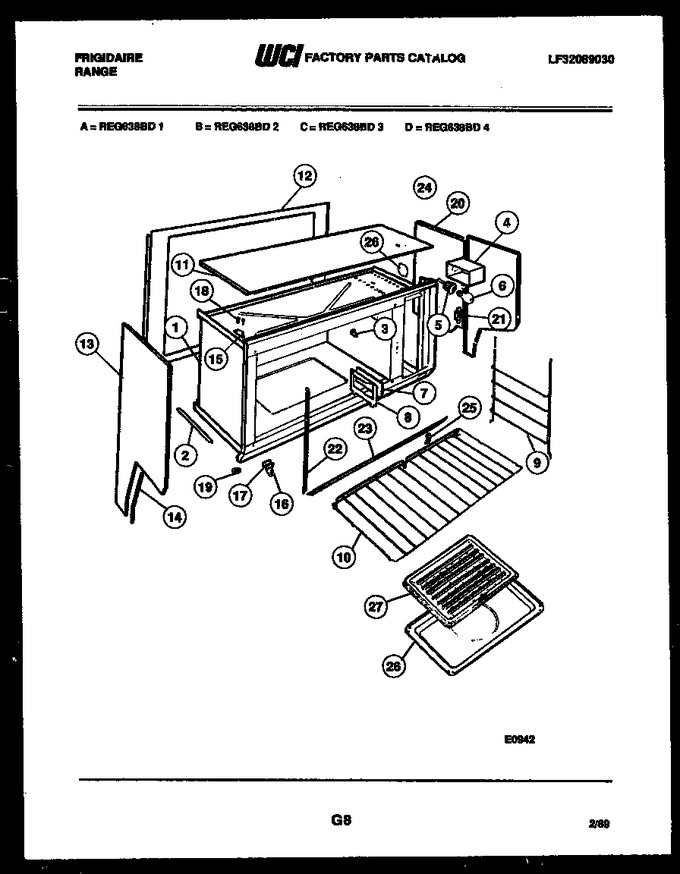

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	08011672		Angle-stiffener		Appelez-nous	-
3	08011667		Clip-cap Bulb (2)		Appelez-nous	-
4	08011684		Box Light		Appelez-nous	-
5	08067791		Socket-light		Appelez-nous	-
6	08087649		Light Bulb		Appelez-nous	-
7	08011668		Lens-oven Light		Appelez-nous	-
8	08011669		Cover Lens		Appelez-nous	-
9	08011674		Glide-oven Rack (2)		Appelez-nous	-
10	3131973		Rack-oven		Appelez-nous	-
11	3131625		Panel-top		Appelez-nous	-
12	3051236		Back-ovn Wall-upr		Appelez-nous	-
13	08067815		Pnl-bodyside-rh-almd		Appelez-nous	-
13	08067813		Pnl-bodyside-lh-almd		Appelez-nous	-
14	08010548		Trim Lh		Appelez-nous	-
14	08010549		Trim-rh		Appelez-nous	-
15	08011686		Hinge-top		Appelez-nous	-
16	08011663		Hinge-bottom		Appelez-nous	-
17	08011665		Plate-hinge		Appelez-nous	-
18	08011685		Screw 10-32 Shldr Special (2)		Appelez-nous	-
19	08011664		Washer-hinge (2)		Appelez-nous	-
20	3131679		Shield-wool (side)		Appelez-nous	-
21	08011680		Catch-door		Appelez-nous	-
22	08011670		Seal-door-sides (2)		Appelez-nous	-
23	08011671		Seal-door-top & Bottom (2)		Appelez-nous	-
24	08067732		Cover-outlet (hood)		Appelez-nous	-
25	08011676		Strike-door		Appelez-nous	-
26	3015585		Broiler Pan		Appelez-nous	-
27	3015587		Insert-broiler Pan		Appelez-nous	-
2A	3015590		Insulation-bottom 1 1/2 X 13 X 221/2 (non-illustrated)		Appelez-nous	-
2B	328T018P33		Insulation-top 3 X 12 1/2 X 24 (non-illustrated)		Appelez-nous	-
2C	3015591		Insulation-bck & Side 2 X 6 X 50 (non-illustrated)		Appelez-nous	-
