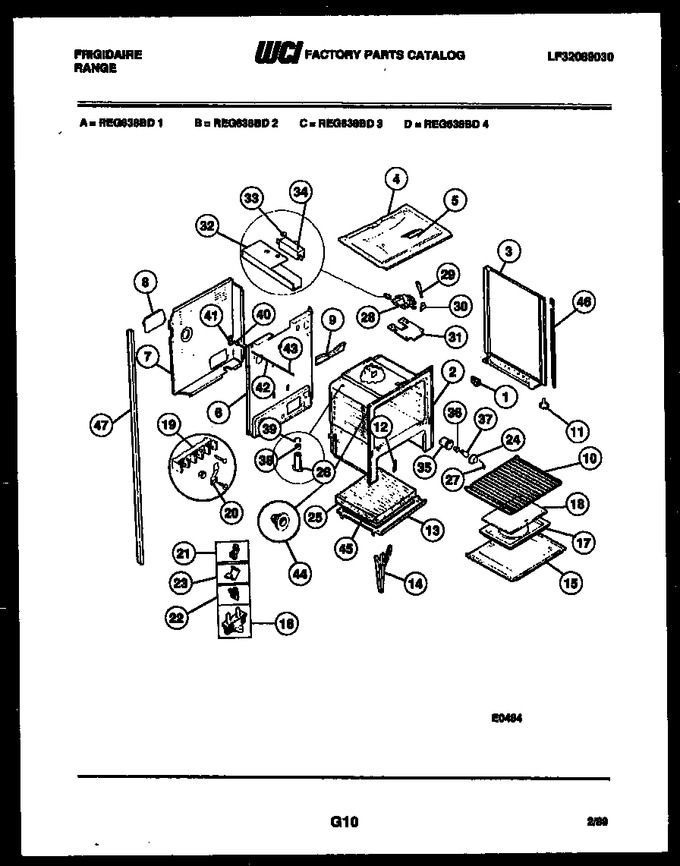

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08067792		Spacer-bdysde (8)		Appelez-nous	-
3	3200793		Panel, Bodyside (lh), Almond		Appelez-nous	-
3	3200790		Panel, Bodyside (rh), Almond		Appelez-nous	-
4	08067749		Burner Box		Appelez-nous	-
5	08067757		Cover Plate		Appelez-nous	-
6	08067728		Back, Main		Appelez-nous	-
7	08067789		Shield-lower Wall		Appelez-nous	-
8	08067756		Cover-lower Access		Appelez-nous	-
9	08067755		Cover, Flue		Appelez-nous	-
10	3131973		Rack-oven		Appelez-nous	-
11	08010569		Screw, Leveling (4)		Appelez-nous	-
12	08067759		Cvr-hng Cutout (2)		Appelez-nous	-
13	3200825		Shield-wool Lwr		Appelez-nous	-
14	08067752		Chanl-dr Hng (2)		Appelez-nous	-
15	08067745		Bottom-oven		Appelez-nous	-
16	08067764		Fuse-thermal Cutout		Appelez-nous	-
17	08016612		Broiler Pan		Appelez-nous	-
18	08016608		Insert, Broiler Pan		Appelez-nous	-
19	08010480		Terminal Block		Appelez-nous	-
20	08067742		Ground Strap		Appelez-nous	-
21	08067754		Clip-thermal Bulb (2)		Appelez-nous	-
22	08067766		Glide, Drawer (2)		Appelez-nous	-
23	08067753		Clip, Wire		Appelez-nous	-
24	08067765		Glass-ovn Lite Lens		Appelez-nous	-
26	08067811		Tube, Oven Vent		Appelez-nous	-
27	08067835		Wire-glass Retainr		Appelez-nous	-
28	08067778		Latch-door		Appelez-nous	-
29	08067777		Handle, Latch		Appelez-nous	-
30	08013189		Knob, Latch		Appelez-nous	-
31	08067780		Shield-latch		Appelez-nous	-
32	08067779		Shield-bi Mtl Latch		Appelez-nous	-
33	08067776		Fastnr-pushon (3)		Appelez-nous	-
34	08067781		Switch, Latching		Appelez-nous	-
35	08067809		Tube-oven Light		Appelez-nous	-
36	08067792		Socket-oven Light		Appelez-nous	-
37	08037649		Light Bulb, Oven		Appelez-nous	-
38	08010607		Filter-catalyst		Appelez-nous	-
39	08010606		Retainer-catalyst		Appelez-nous	-
40	08067993		Switch-door		Appelez-nous	-
41	08067933		Bracket-lt Switch		Appelez-nous	-
42	08067784		Rod, Light		Appelez-nous	-
43	08067758		Cover, Rod				$ 2.31
44	08067750		Button-remote Light Switch		Appelez-nous	-
45	3200848		Shield,heat ,lower		Appelez-nous	-
46	08067796		Trim-vertical Bodyside (2)		Appelez-nous	-
47	08067744		Tube, Post Rh		Appelez-nous	-
47	08067743		Tube, Post Lh		Appelez-nous	-
27B	08067772		Insulation-back (non-illustrated)		Appelez-nous	-
27C	08067953		Bumpr-frnt Frame (2) (non-illustrated)		Appelez-nous	-
30A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
45A	3200833		Insulation-wrap (non-illustrated)		Appelez-nous	-
45B	3200834		Shield-heat Bodyside (2) (non-illustrated)		Appelez-nous	-
45C	3200847		Insulation-lower (non-illustrated)		Appelez-nous	-
45D	3200846		Fastener-edge Mount (2) (non-illustrated)		Appelez-nous	-
