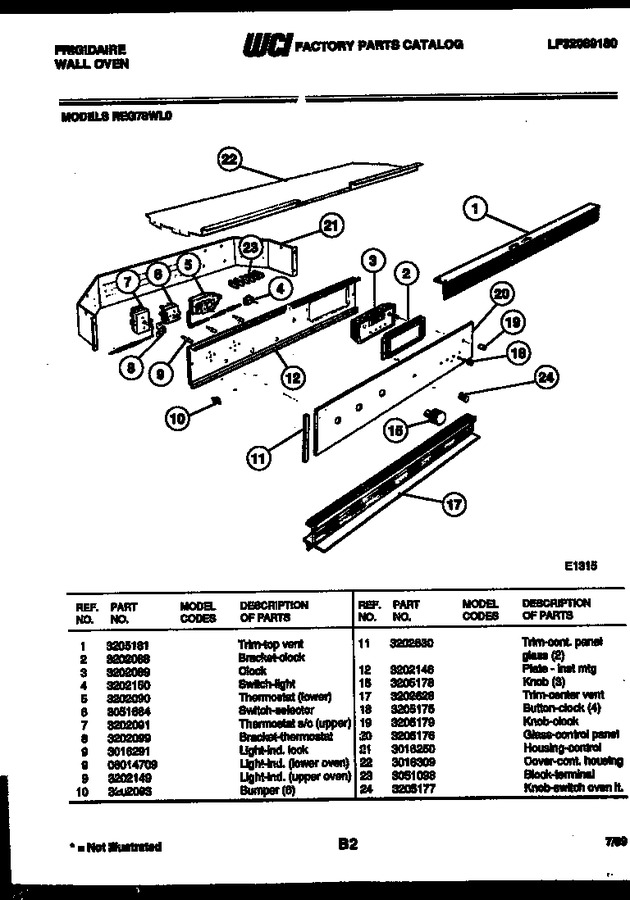

02 - Control Panel
03 - Door Parts
04 - Body Parts
05 - Body Parts
06 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205181 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 3202150 | Switch-light |
|
- | |||||
| 5 | 3202090 | Thermostat (lower) |
|
- | |||||
| 6 | 3051684 | Switch-selector |
|
- | |||||
| 7 | 3202091 | Thermostat S/c (upper) |
|
- | |||||
| 8 | 3202099 | Bracket-thermostat |
|
- | |||||
| 9 | 08014709 | Light-ind. (lower Oven) |
|
- | |||||
| 9 | 3202149 | Light-ind. (upper Oven) |
|
- | |||||
| 9 | 3016291 | Light-ind. Lock |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202630 | Trim-cont. Panel Glass (2) |
|
- | |||||
| 12 | 3202146 | Plate-inst Mtg |
|
- | |||||
| 15 | 3205178 | Knob (3) |
|
- | |||||
| 17 | 3202628 | Trim - Center Vent |
|
- | |||||
| 18 | 3205175 | Button, Clock (4) |
|
- | |||||
| 19 | 3205179 | Knob-clock |
|
- | |||||
| 20 | 3205176 | Glass-control Panel |
|
- | |||||
| 21 | 3016250 | Housing, Control |
|
- | |||||
| 22 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 23 | 3051098 | Block Terminal |
|
- | |||||
| 24 | 3205177 | Knob-switch Oven Lt. |
|
- |
