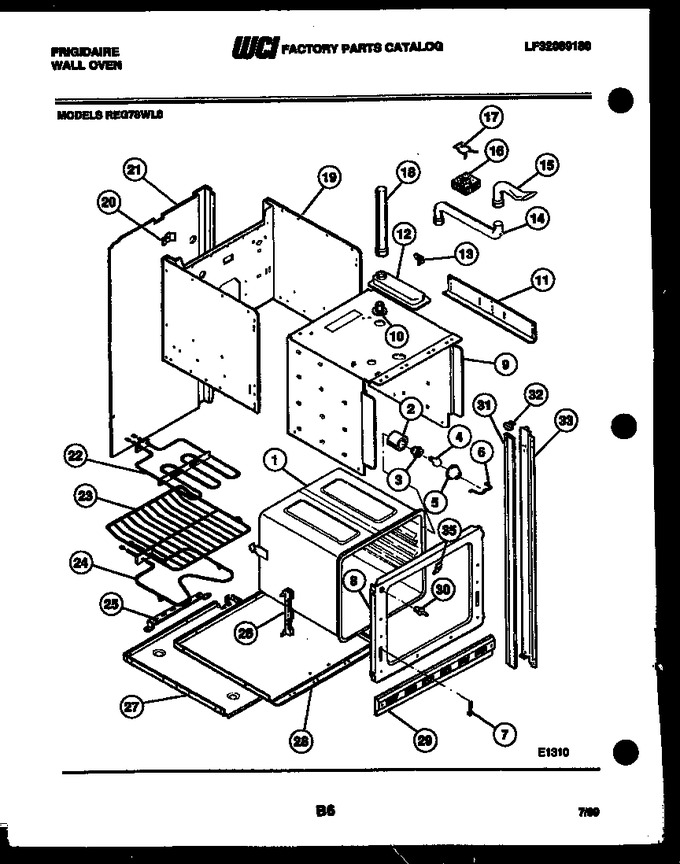

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201184		Liner-oven		Appelez-nous	-
2	3016243		Tube - Oven Light		Appelez-nous	-
3	08011085		Receptacle		Appelez-nous	-
4	3013071		Bulb		Appelez-nous	-
5	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
6	3016244		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	3202083		Frame-front		Appelez-nous	-
9	3016272		Shield - Wool		Appelez-nous	-
10	3051742		Tube-oven Vent		Appelez-nous	-
11	3016278		Support - Height Adj		Appelez-nous	-
12	3016324		Duct-oven Vent		Appelez-nous	-
13	3016323		Bracket-oven Vent		Appelez-nous	-
14	3016327		Duct-oven Vent Pipe		Appelez-nous	-
15	3016331		Duct-oven Vent		Appelez-nous	-
16	3016302		Insulation-oven Vent		Appelez-nous	-
17	3016303		Clip-insul Retainer		Appelez-nous	-
18	3016325		Duct-oven Vent Cent		Appelez-nous	-
19	3016275		Wrapper		Appelez-nous	-
20	3016281		Spring, Oven (2)		Appelez-nous	-
21	3016335		Cover-rear		Appelez-nous	-
22	3016247		Element-broil		Appelez-nous	-
23	3016315		Rack		Appelez-nous	-
24	3016246		Element-bake		Appelez-nous	-
25	3016248		Support, Broil Element		Appelez-nous	-
26	3201631		Hinge Assembly (2)				$ 58.22
27	3016277		Wrapper, Base		Appelez-nous	-
28	3016273		Shield-insul Base		Appelez-nous	-
29	3202627		Trim - Base		Appelez-nous	-
30	3051531		Switch-oven Light		Appelez-nous	-
31	3016322		Trim-inner-lh		Appelez-nous	-
32	3202632		Trim Cap, Lh		Appelez-nous	-
33	3205180		Trim-side Outer (2)		Appelez-nous	-
35	3202082		Cover Seam		Appelez-nous	-
*99684	3131060		Clip-capillary (4)		Appelez-nous	-
*99684	3016323		Insulation-wrap		Appelez-nous	-
*99684	3016319		Insulation-back		Appelez-nous	-
31A	3016321		Trim-inner-rh		Appelez-nous	-
32A	3202631		Trim Cap, Rh		Appelez-nous	-
