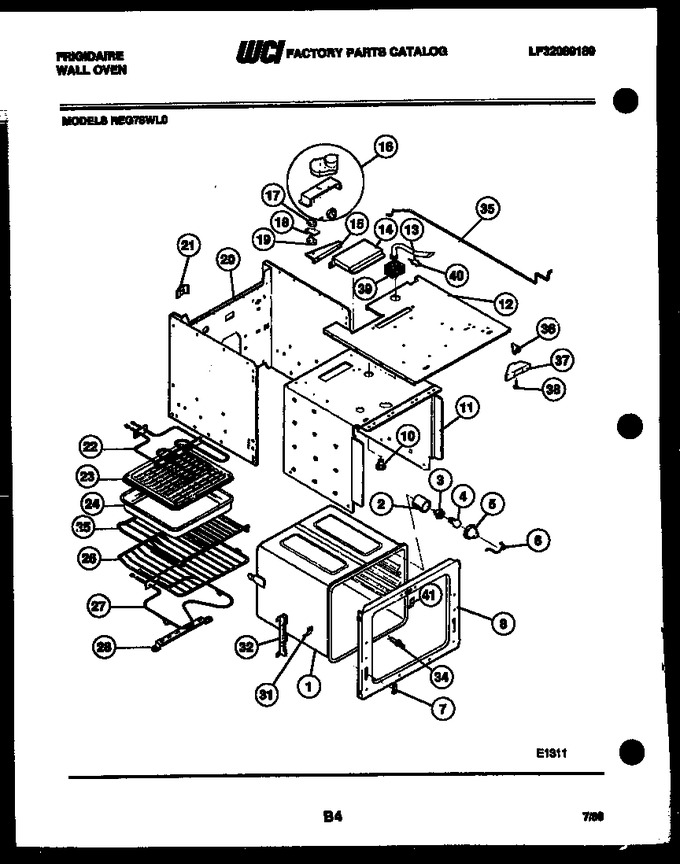

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016269		Liner-oven		Appelez-nous	-
2	3016243		Tube - Oven Light		Appelez-nous	-
3	08011085		Receptacle		Appelez-nous	-
4	3013071		Bulb		Appelez-nous	-
5	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
6	3016244		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	3019070		Frame-front		Appelez-nous	-
10	3016245		Vent-tube Assembly		Appelez-nous	-
11	3016272		Shield - Wool		Appelez-nous	-
12	3016249		Wrapper - Top		Appelez-nous	-
13	3016301		Duct - Vent Tube		Appelez-nous	-
14	3016296		Cover-motor		Appelez-nous	-
15	3016276		Bracket-motor Mtg		Appelez-nous	-
16	3016242		Motor-latch Assy		Appelez-nous	-
17	3202114		Switch-top		Appelez-nous	-
18	3051861		Insulator		Appelez-nous	-
19	08006582		Switch-bottom		Appelez-nous	-
20	3016320		Wrapper		Appelez-nous	-
21	3016281		Spring, Oven (2)		Appelez-nous	-
22	3016247		Element-broil		Appelez-nous	-
23	3019066		Insert-broiler Pan		Appelez-nous	-
24	3018808		Pan-broiler		Appelez-nous	-
25	5304531722		Rack - Off Set   (Replaces: 3016282)			Immediately	$ 51.05
26	3016315		Rack-regular		Appelez-nous	-
27	3016246		Element-bake		Appelez-nous	-
28	3016248		Support, Broil Element		Appelez-nous	-
31	3201632		Spacer, Oven (2)		Appelez-nous	-
32	3201631		Hinge Assembly (2)				$ 58.22
34	3016298		Switch-door		Appelez-nous	-
35	3016241		Rod		Appelez-nous	-
36	3051648		Latch		Appelez-nous	-
37	3019069		Housing-latch		Appelez-nous	-
38	08012004		Axle-latch		Appelez-nous	-
39	3016302		Insulation - Vent		Appelez-nous	-
40	3016303		Clip-insul Retainer		Appelez-nous	-
41	3202082		Cover Seam		Appelez-nous	-
*99665	3019048		Insulation-wrap		Appelez-nous	-
*99665	3016274		Insulation, Back		Appelez-nous	-
*99666	3131060		Clip-capillary (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
