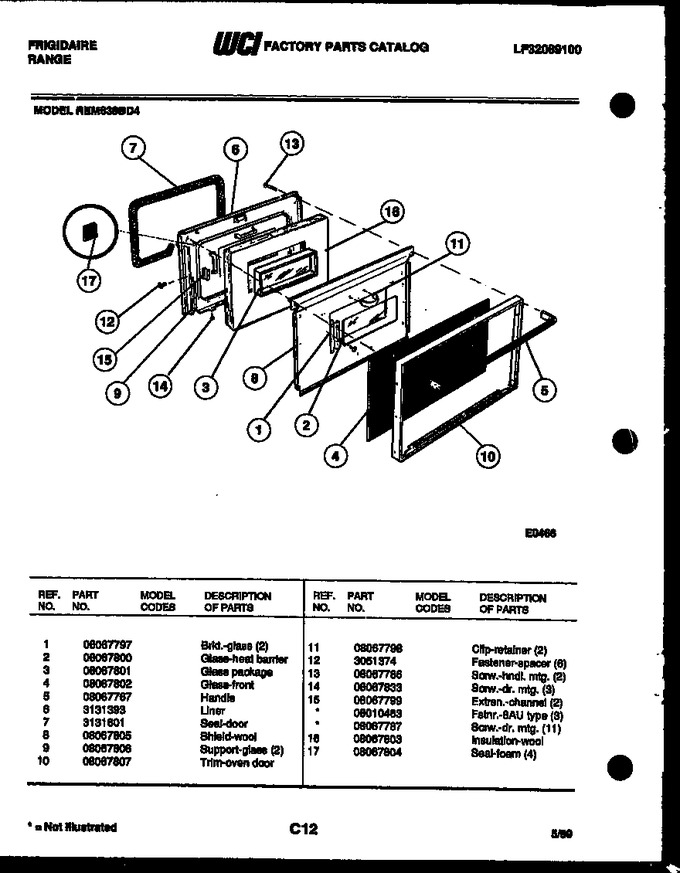

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08067797		Brkt., Glass (2)		Appelez-nous	-
2	08067800		Glass, Heat Barrier		Appelez-nous	-
3	08067801		Glass-package		Appelez-nous	-
4	08067802		Glass, Front		Appelez-nous	-
5	08067767		Handle		Appelez-nous	-
6	3131393		Liner		Appelez-nous	-
7	3131601		Seal, Door		Appelez-nous	-
8	08067805		Shield, Wool		Appelez-nous	-
9	08067806		Support, Glass (2)		Appelez-nous	-
10	08067807		Trim, Oven Door		Appelez-nous	-
11	08067798		Clip, Retainer (2)		Appelez-nous	-
12	3051374		Fastener, Spacer (6)		Appelez-nous	-
13	08067786		Scrw., Hndl. Mtg. (2)		Appelez-nous	-
14	08067833		Scrw., Dr. Mtg. (3)		Appelez-nous	-
15	08067799		Extrsn., Channel (2)		Appelez-nous	-
16	08067803		Insulation, Wool		Appelez-nous	-
17	08067804		Seal, Foam (4)		Appelez-nous	-
15A	08010463		Fastener-clip		Appelez-nous	-
15B	08067787		Scrw., Dr. Mtg. (11) (non-illustrated)		Appelez-nous	-
