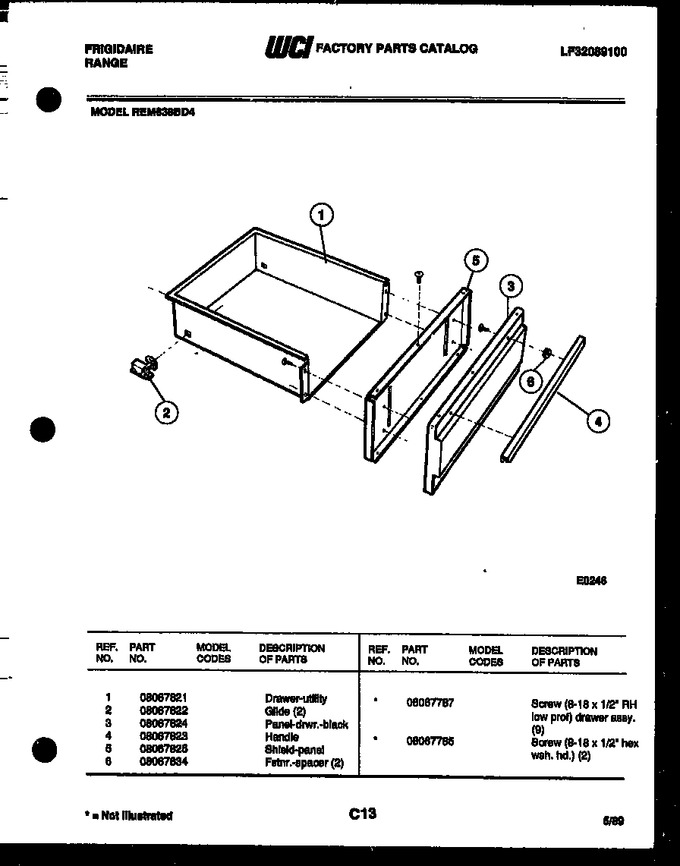

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08067821		Drawer, Utility		Appelez-nous	-
2	08067822		Glide (2)		Appelez-nous	-
3	08067824		Panel, Drwr., Black		Appelez-nous	-
4	08067823		Handle		Appelez-nous	-
5	08067825		Shield, Panel		Appelez-nous	-
6	08067834		Fstnr., Spacer (2)		Appelez-nous	-
*34896	08067785		Screw (8-18 X 1/2`` Hex Wsh. Hd.) (2)		Appelez-nous	-
*34896	08067787		Screw (8-18 X 1/2`` Rh Low Prof) Drawer Assy. (9)		Appelez-nous	-
