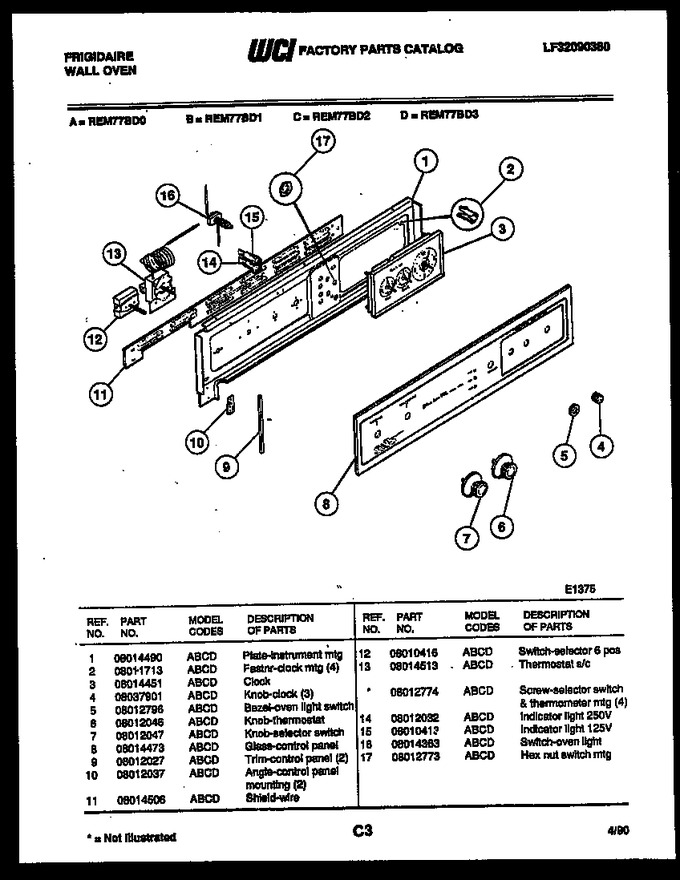

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08014490		Plate-instrument Mtg		Appelez-nous	-
2	08011713		Fastnr-clock Mtg (4)		Appelez-nous	-
3	08014451		Clock		Appelez-nous	-
4	08037901		Knob-clock (3)		Appelez-nous	-
5	08012796		Bezel-oven Light Switch		Appelez-nous	-
6	08012046		Knob-thermostat		Appelez-nous	-
7	08012047		Knob-selector Switch		Appelez-nous	-
8	08014473		Glass-control Panel		Appelez-nous	-
9	08012027		Trim-control Panel (2)		Appelez-nous	-
10	08012037		Angle-control Panel Mounting (2)		Appelez-nous	-
11	08014506		Shield-wire		Appelez-nous	-
12	08010416		Switch-selector 6 Pos		Appelez-nous	-
13	08014513		Thermostat S/c		Appelez-nous	-
14	08012032		Indicator Light 250v		Appelez-nous	-
15	08010413		Indicator Light 125v		Appelez-nous	-
16	08014363		Switch-oven Light		Appelez-nous	-
17	08012773		Hex Nut Switch Mtg		Appelez-nous	-
13A	08012774		Screw-selector Switch & Thermometer Mtg (4) (non-illustrated)		Appelez-nous	-
