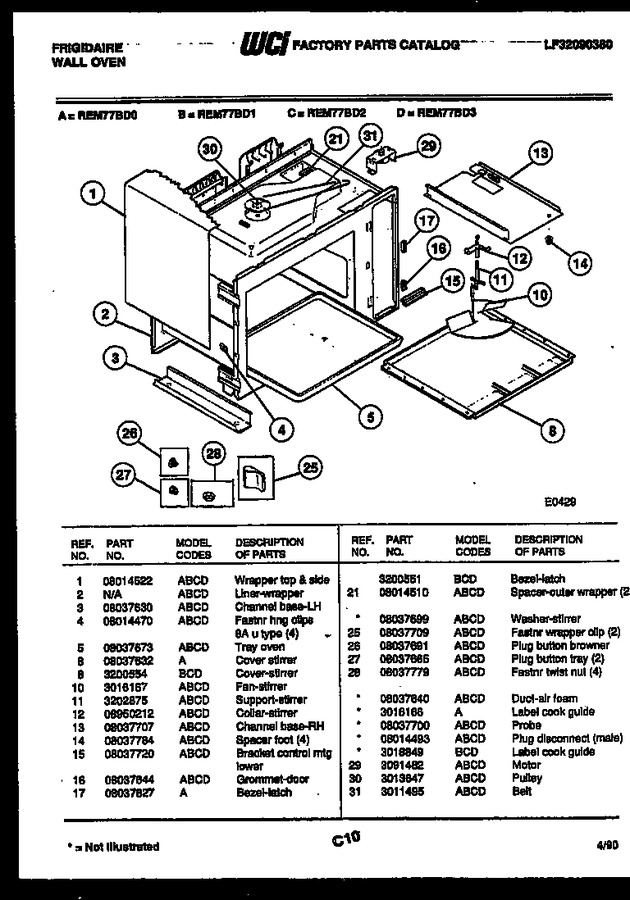

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014522 | Wrapper Top & Side |
|
- | |||||
| 3 | 08037630 | Channel Base Lh |
|
- | |||||
| 4 | 08014470 | Fastnr Hng Clips 8a U Type (4) |
|
- | |||||
| 5 | 08037673 | Tray Oven |
|
- | |||||
| 8 | 08037632 | Cover, Stirrer |
|
- | |||||
| 10 | 3016167 | Fan-stirrer |
|
- | |||||
| 11 | 3202875 | Support - Stirrer |
|
- | |||||
| 12 | 08950212 | Collar-stirrer |
|
- | |||||
| 13 | 08037707 | Channel Base R.h. |
|
- | |||||
| 14 | 08037784 | Spacer Foot (4) |
|
- | |||||
| 15 | 08037720 | Bracket Control Mtg Lower |
|
- | |||||
| 16 | 08037644 | Grommet Door |
|
- | |||||
| 17 | 08037827 | Bezel-latch |
|
- | |||||
| 21 | 08014510 | Spacer-outer Wrapper (2) |
|
- | |||||
| 25 | 08037709 | Fastnr Wrapper Clip (2) |
|
- | |||||
| 26 | 08037691 | Plug Button Browner |
|
- | |||||
| 27 | 08037665 | Plug Button Tray (2) |
|
- | |||||
| 28 | 08037779 | Fastnr Twist Nut (4) |
|
- | |||||
| 29 | 3091482 | Motor |
|
- | |||||
| 30 | 3013647 | Pulley |
|
- | |||||
| 31 | 3011495 | Belt |
|
- | |||||
| 21A | 08037699 | Washer-stirrer (non-illustrated) |
|
- | |||||
| 28A | 08037640 | Duct, Air Foam (non-illustrated) |
|
- | |||||
| 28B | 3016166 | Label Cook Guide (non-illustrated) |
|
- | |||||
| 28C | 08037700 | Probe (non-illustrated) |
|
- | |||||
| 28D | 08014493 | Plug Disconnect (male) (non-illustrated) |
|
- |
