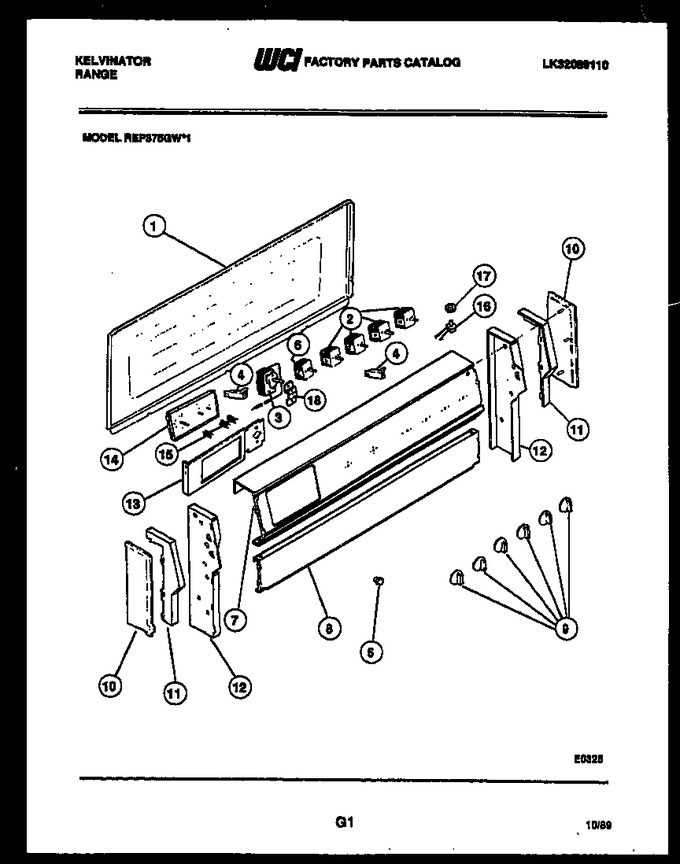

02 - Backguard Parts


03 - Cooktop Parts


04 - Broiler Parts


05 - Door Parts


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017529		Cover-wire		Appelez-nous	-
2	3051540		Switch - S/u Sm (2)		Appelez-nous	-
2	K001313767		Switch - S/u Lg (2)		Appelez-nous	-
3	3934039		Thermostat		Appelez-nous	-
4	3051679		Signal Light-oven		Appelez-nous	-
4	K5138903		Signal Light-s/u And Clean (2)		Appelez-nous	-
5	3051514		Lens-signal Light (3)		Appelez-nous	-
6	08015771		Switch-oven Selector		Appelez-nous	-
7	3206298		Panel-backguard		Appelez-nous	-
8	K5137606		Panel Backsplash, Almond		Appelez-nous	-
9	3015698		Knob-s/u (6)		Appelez-nous	-
10	3051674		Body-end Cap-r.h.		Appelez-nous	-
10	3051675		Body-end Cap-l.h.		Appelez-nous	-
11	3051672		Trim-end Cap-r.h.		Appelez-nous	-
11	3051673		Trim-end Cap-l.h.		Appelez-nous	-
12	K5127701		Support-backgrd Rh		Appelez-nous	-
12	K5127702		Support-backgrd Lh		Appelez-nous	-
13	K5127901		Bracket Mounting		Appelez-nous	-
14	K5260501		Timer		Appelez-nous	-
15	K1304907		Knob-clock (3)		Appelez-nous	-
16	3051687		Switch-oven It		Appelez-nous	-
17	K5051701		Nut, Knurled		Appelez-nous	-
18	08015745		Bracket-thermo Mtg		Appelez-nous	-
*81073	K1167966		Glass-clock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
