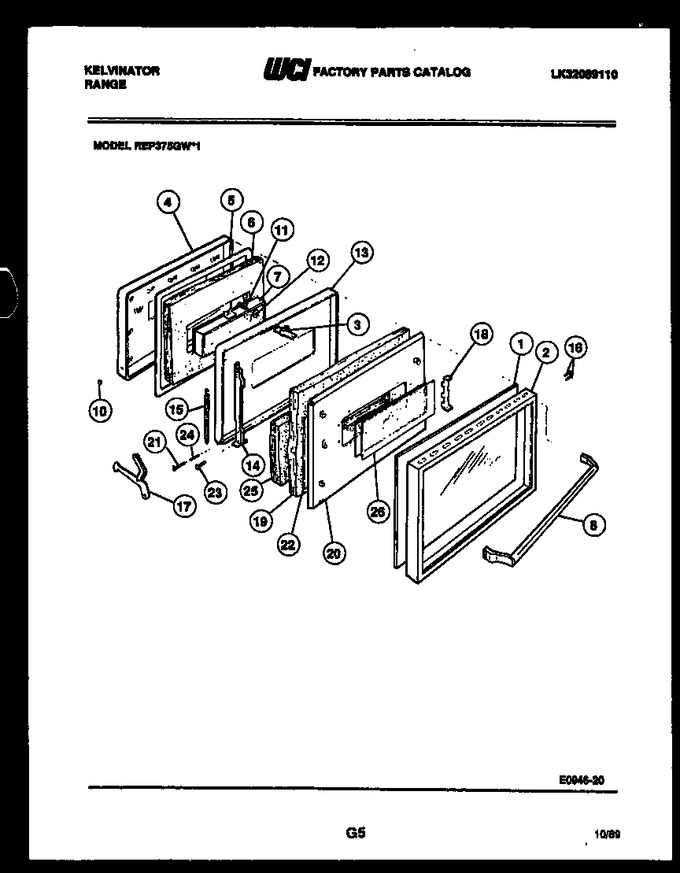

SELECT A DIAGRAM

02 - Backguard Parts


03 - Cooktop Parts


04 - Broiler Parts


05 - Door Parts


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012546		Glass - Outer		Appelez-nous	-
2	3206077		Frame, Door		Appelez-nous	-
3	K1167830		Strike		Appelez-nous	-
4	3017634		Baffle, Oven Door		Appelez-nous	-
5	3051704		Gasket - Oven Door		Appelez-nous	-
6	3008673		Insulation, Baffle		Appelez-nous	-
7	3205235		Window Assy		Appelez-nous	-
8	3205317		Handle		Appelez-nous	-
10	08003167		Button-plug		Appelez-nous	-
11	08004957		Screw 10 X 24		Appelez-nous	-
12	08002847		Washer-padded		Appelez-nous	-
13	3017530		Door Liner		Appelez-nous	-
14	3051822		Channel (2)		Appelez-nous	-
15	08003186		Door - Spring		Appelez-nous	-
16	08012564		Screw - Handle (4)		Appelez-nous	-
17	08003183		Door-hinge Arm		Appelez-nous	-
18	08003178		Retainer-glass (2)		Appelez-nous	-
19	K1322652		Insulation, Airwash		Appelez-nous	-
20	3051712		Panel, Airwash		Appelez-nous	-
21	08012004		Rivet-square Hd (2)		Appelez-nous	-
22	3051862		Foil, Aluminum		Appelez-nous	-
23	08003184		Axle - Hinge (2)		Appelez-nous	-
24	08950070		Roller Pkg-oven Door		Appelez-nous	-
25	3008677		Insulation, Liner		Appelez-nous	-
26	3051713		Glass - Inner		Appelez-nous	-
