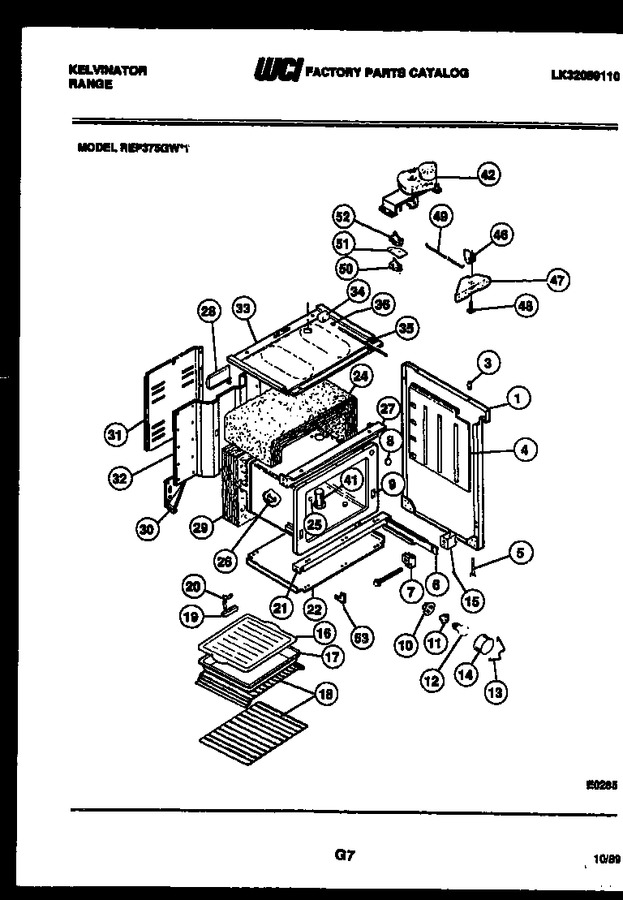

02 - Backguard Parts
03 - Cooktop Parts
04 - Broiler Parts
05 - Door Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08012529 | Side Pnl - Rh (almd) |
|
- | |||||
| 3 | 08003107 | Bumper - Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insul (2) |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 7 | 08003103 | Guide - Drawer Front |
|
- | |||||
| 8 | 3051784 | Plug Button-oven Light Hole |
|
- | |||||
| 9 | 3204603 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 3205904 | Retainer - Lens |
|
- | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 15 | 08011055 | Spacer - Drwr Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3205232 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack - Oven Regular |
|
- | |||||
| 19 | 3051098 | Terminal-block |
|
- | |||||
| 20 | 08003146 | Strap - Ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3203574 | Panel - Bottom |
|
- | |||||
| 24 | 3051628 | Insulation-oven Wrap |
|
- | |||||
| 25 | 3051796 | Plug-button Thermo |
|
- | |||||
| 26 | 3051552 | Brkt, Thermobulb |
|
- | |||||
| 27 | K1325636 | Channel-oven |
|
- | |||||
| 28 | K5134501 | Channel, Air |
|
- | |||||
| 29 | 3051630 | Insulation-oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Cover - Wire |
|
- | |||||
| 32 | 3017535 | Back - Range |
|
- | |||||
| 33 | 08012542 | Panel - Subtop |
|
- | |||||
| 34 | 08003081 | Switch - Door |
|
- | |||||
| 35 | 3051645 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 41 | 08012574 | Vent-tube |
|
- | |||||
| 42 | 08015743 | Latch - Motor |
|
- | |||||
| 46 | 3051648 | Latch-door |
|
- | |||||
| 47 | 3019074 | Housing-door Latch |
|
- | |||||
| 48 | 08003184 | Axle |
|
- | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3007889 | Switch - Lower |
|
- | |||||
| 51 | 08003090 | Insulator |
|
- | |||||
| 52 | 08003092 | Switch - Upper |
|
- | |||||
| 53 | 3051810 | Retainer-door (2) |
|
- | |||||
| *81253 | 3934063 | Anti-tip Kit |
|
- | |||||
| 18A | 08014219 | Rack-oven, Offset |
|
- | |||||
| 1A | 08012530 | Side Pnl - Lh (almd) |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 33A | 08002847 | Washer-padded (non-illustrated) |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
