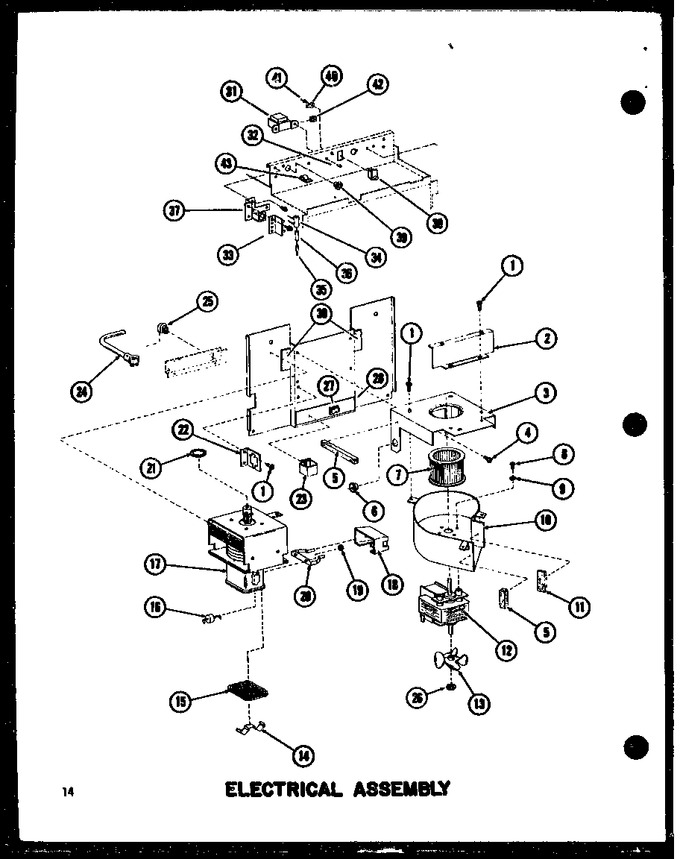

RC-14S (BOM: P7264901M) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	M0218116	Screw	Appelez-nous	-
2	B5712301	End Plate-plenum	Appelez-nous	-
3	C8707801	Brkt-blower Scroll	Appelez-nous	-
4	WP90767	Screw (Replaces: M0216529)		Immediately	$ 7.04
5	A3030303	Gasket (per Foot)	Appelez-nous	-
6	A4554806	Snap Bushing	Appelez-nous	-
7	C3670802	Wheel, Blower	Appelez-nous	-
8	M0204701	Screw	Appelez-nous	-
9	M0272605	Washer	Appelez-nous	-
10	C8710701	Wldmt-blower Scroll	Appelez-nous	-
11	A3030309	Gasket (per Foot)	Appelez-nous	-
12	C8711902	Kit, Motor	Appelez-nous	-
13	B5706702	Fan Blade-blower	Appelez-nous	-
14	A3145401	Bale Strap K	Appelez-nous	-
15	B5647901	Cover Cap Box K	Appelez-nous	-
16	A3148801	Capacitor K	Appelez-nous	-
17	D7203101	Assembly, Magnetron	Appelez-nous	-
18	B5656001	Shield Hv K	Appelez-nous	-
19	M0281901	Hex Nut	Appelez-nous	-
20	B5655902	Clip K	Appelez-nous	-
21	A3185102	Gasket, Magnetron	Appelez-nous	-
22	B5716901	Bracket-connector	Appelez-nous	-
23	M0104102	Clip, Cord			$ 8.10
24	B5731701	Kit,cord	Appelez-nous	-
25	M0371301	Strain Relief	Appelez-nous	-
26	M0118901	Clip	Appelez-nous	-
27	M0104401	Clip-cord	Appelez-nous	-
28	M0275012	Tape-per Roll	Appelez-nous	-
30	A3030316	Gasket	Appelez-nous	-
31	C8773501	Transformer, Control	Appelez-nous	-
32	WP90767	Screw (Replaces: M0216529)		Immediately	$ 7.04
33	B5764801	Terminal Board	Appelez-nous	-
34	M0305012	Resistor	Appelez-nous	-
35	M0308109	Fuse Resistor K (Replaces: M0308107)	Appelez-nous	-
36	M0321703	Sleeve	Appelez-nous	-
37	B5761101	Brkt	Appelez-nous	-
38	B5674702	Switch-sensing	Appelez-nous	-
39	A3293503	Snap Bushing	Appelez-nous	-
40	M0320903	Terminal-ground	Appelez-nous	-
41	A4539601	Pop Rivet	Appelez-nous	-
42	M0288107	Speed Nut	Appelez-nous	-
43	M0104102	Clip, Cord			$ 8.10
