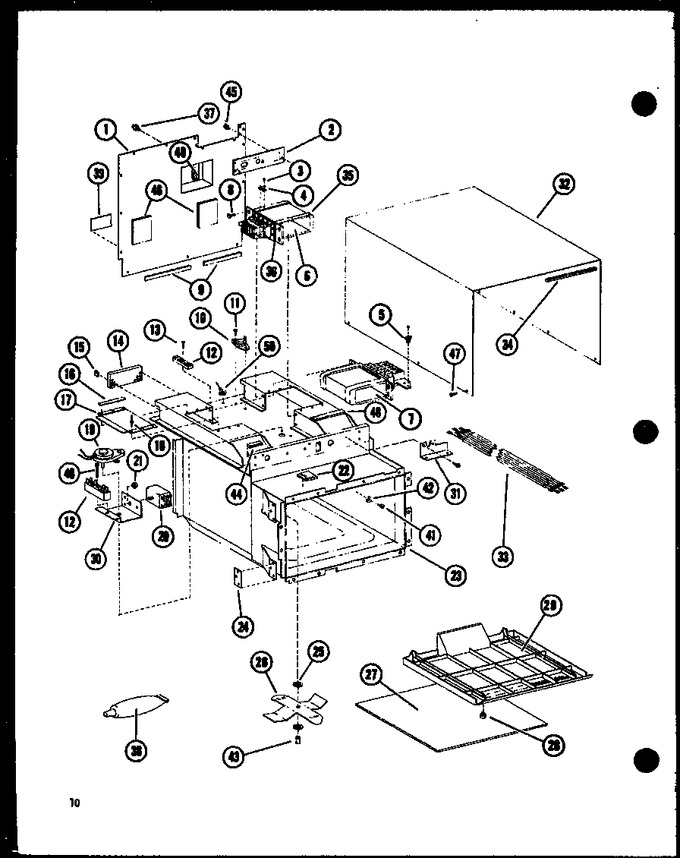

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8772201 | Access Panel Wld |
|
- | |||||
| 2 | B5763501 | Panel, Strain Relief |
|
- | |||||
| 3 | M0234114 | Screw |
|
- | |||||
| 4 | B5684102 | Thermal Protector |
|
- | |||||
| 5 | B5684105 | Thermal Protector K |
|
- | |||||
| 6 | C8720507 | Assembly, Isolator |
|
- | |||||
| 7 | C8720506 | Assembly, Isolator |
|
- | |||||
| 8 | M0216517 | Screw |
|
- | |||||
| 9 | A3030335 | Gasket-per Ft |
|
- | |||||
| 10 | B5703002 | Thermal Cut Out |
|
- | |||||
| 11 | M0218116 | Screw |
|
- | |||||
| 12 | B5677203 | Terminal Block |
|
- | |||||
| 13 | M0234117 | Screw |
|
- | |||||
| 14 | A3184901 | X$x End W-g |
|
- | |||||
| 15 | M0113503 | Clip |
|
- | |||||
| 16 | B5718903 | Gasket K |
|
- | |||||
| 17 | B5714101 | Cover-isolator |
|
- | |||||
| 18 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 19 | B5602811 | Motor |
|
- | |||||
| 20 | C8709607 | Relay, Power |
|
- | |||||
| 21 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 22 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 23 | D7206402 | Oven Wld |
|
- | |||||
| 24 | A3250301 | Shim-hinge |
|
- | |||||
| 25 | A3109101 | Washer |
|
- | |||||
| 26 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 27 | B5748801 | Tray, Oven |
|
- | |||||
| 28 | A3245601 | Screw Retainer |
|
- | |||||
| 29 | D7238301 | Grease Shield Kit |
|
- | |||||
| 30 | C8766001 | Plate Relay Mtg |
|
- | |||||
| 31 | B5756101 | Brkt Supt-interlock |
|
- | |||||
| 32 | D7299901 | Wrapper-oc |
|
- | |||||
| 33 | D7305701 | Wiring Harness |
|
- | |||||
| 34 | A3030301 | Gasket (inch) |
|
- | |||||
| 35 | A3225401 | Gasket K |
|
- | |||||
| 36 | A3225402 | Gasket K |
|
- | |||||
| 37 | M0228016 | Screw |
|
- | |||||
| 38 | M0275501 | Sealer |
|
- | |||||
| 39 | B5738501 | Seal K |
|
- | |||||
| 40 | M0234117 | Screw |
|
- | |||||
| 41 | M0234025 | Screw |
|
- | |||||
| 42 | M0273612 | Washer |
|
- | |||||
| 43 | M0114002 | Clip |
|
- | |||||
| 44 | B5718906 | Gasket |
|
- | |||||
| 45 | M0218128 | Screw |
|
- | |||||
| 46 | A3205601 | Insulation |
|
- | |||||
| 47 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 6.26 | ||||
| 48 | B5718903 | Gasket K |
|
- | |||||
| 49 | A3030304 | Gasket, 24`` |
|
- | |||||
| 50 | M0320904 | Terminal |
|
- |
