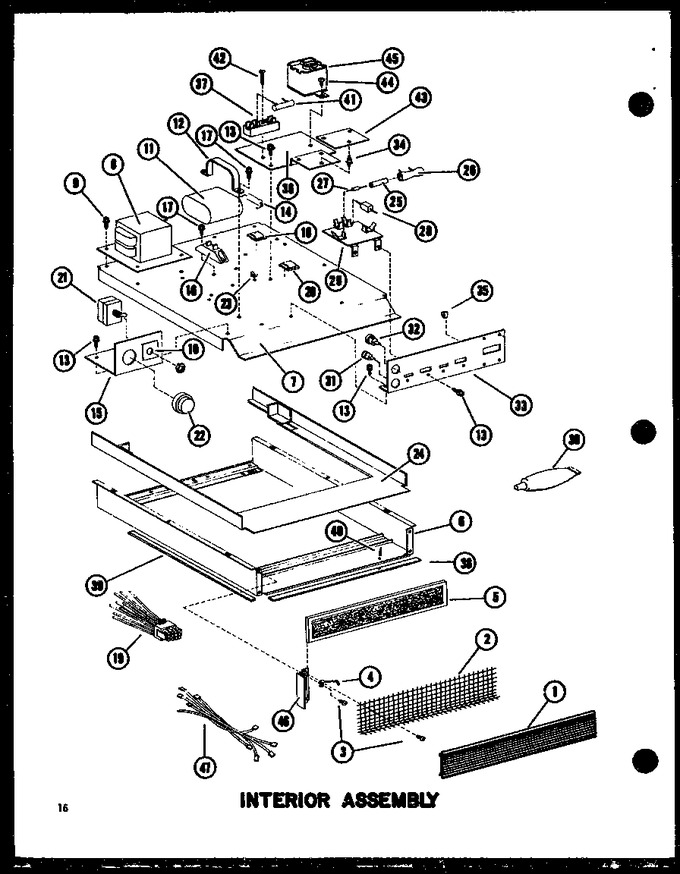

01 - Bezel Assy
02 - Door Assy
03 - Electrical Assy
04 - Interior Assy
05 - Page 2
06 - Page 3
07 - Page 7
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8708501 | Grille Air Inlet |
|
- | |||||
| 2 | B5713901 | Screen, Air Intake |
|
- | |||||
| 3 | M0230015 | Screw |
|
- | |||||
| 4 | A3225201 | Clip |
|
- | |||||
| 4 | A3225202 | Clip |
|
- | |||||
| 5 | B5714801 | Filter |
|
- | |||||
| 6 | C8709102 | Base Pan Wld |
|
- | |||||
| 7 | D7203601 | Chassis |
|
- | |||||
| 8 | D7199601 | Transformer, Plate, H.v. 230/2 |
|
- | |||||
| 9 | M0253543 | Screw K |
|
- | |||||
| 10 | A3225301 | Plate-voltage |
|
- | |||||
| 11 | R0160011 | Capacitor Kit |
|
- | |||||
| 12 | A3184702 | Bracket |
|
- | |||||
| 13 | M0218116 | Screw |
|
- | |||||
| 14 | M0305202 | Resistor A |
|
- | |||||
| 15 | B5759401 | Brkt-voltage Sel |
|
- | |||||
| 16 | 11QBP0235 | Kit, Diode (Replaces: B5685801) |
|
$ 15.33 | |||||
| 17 | M0216517 | Screw |
|
- | |||||
| 18 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 19 | D7305801 | Wiring Harness |
|
- | |||||
| 20 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 21 | B5730101 | Toggle Switch |
|
- | |||||
| 22 | A3276301 | Alarm |
|
- | |||||
| 23 | M0320901 | Terminal |
|
- | |||||
| 24 | C8775301 | Oven Mtg Plate |
|
- | |||||
| 25 | M0321701 | Sleeve |
|
- | |||||
| 26 | M0305009 | Resistor A |
|
- | |||||
| 27 | M0308102 | Fuse |
|
- | |||||
| 28 | M0305204 | Resistor |
|
- | |||||
| 29 | B5687402 | Terminal Board |
|
- | |||||
| 30 | M0275560 | Rtv (blk) |
|
- | |||||
| 31 | M0325401 | Bushing,terminal |
|
- | |||||
| 32 | M0325402 | Bushing,terminal |
|
- | |||||
| 33 | C8706601 | Brkt-fuse Resistor |
|
- | |||||
| 34 | B5675501 | Supt Ckt Bd A |
|
- | |||||
| 35 | M0110501 | Clip K |
|
- | |||||
| 36 | B5778301 | Brkt-surge Relay |
|
- | |||||
| 37 | B5677203 | Terminal Block |
|
- | |||||
| 38 | C8737302 | Gasket, Base Pan |
|
- | |||||
| 39 | C8737301 | Gasket, Base Pan |
|
- | |||||
| 40 | A4539602 | Pop Rivet |
|
- | |||||
| 41 | M0305014 | Resistor |
|
- | |||||
| 42 | M0234117 | Screw |
|
- | |||||
| 43 | B5691004 | Time Delay K |
|
- | |||||
| 44 | M0230015 | Screw |
|
- | |||||
| 45 | C3669603 | Kit, Relay |
|
- | |||||
| 46 | B5714401 | End Cap-grill |
|
- | |||||
| 47 | C8711001 | Wiring Harness-hv |
|
- |
