SELECT A DIAGRAM

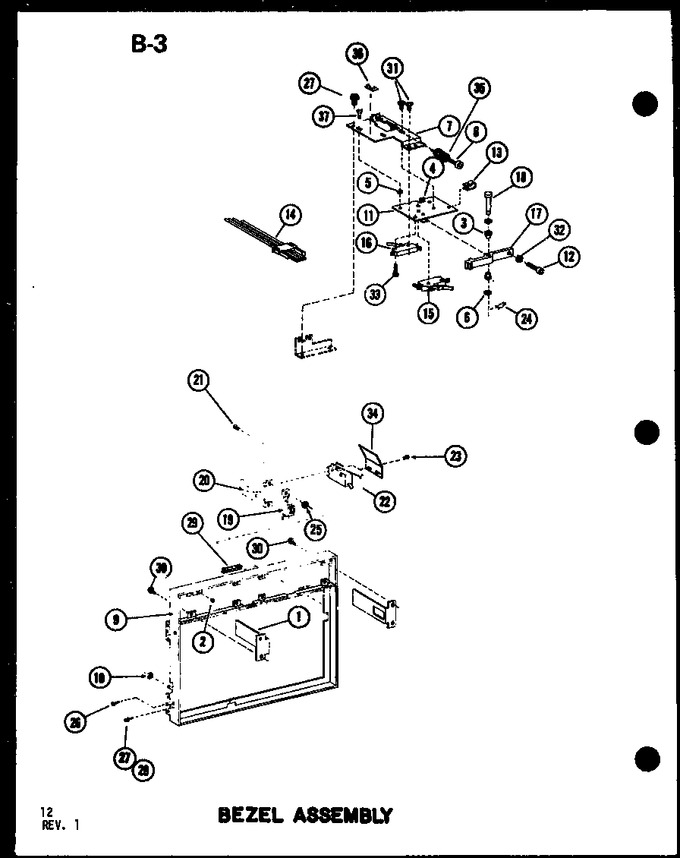

01 - Bezel Assy


02 - Door Assy


03 - Electrical Assy


04 - Interior Assy


05 - Page 2


06 - Page 3


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5758201		Brkt-frame		Appelez-nous	-
2	M0113006		Clip A		Appelez-nous	-
3	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
4	M0118801		Clip		Appelez-nous	-
5	M0274032		Washer Non-metal		Appelez-nous	-
6	M0270524		Washer		Appelez-nous	-
7	B5747201		Adj Brkt-switch		Appelez-nous	-
8	M0231249		Screw		Appelez-nous	-
9	D7293502		Bezel-outer Case		Appelez-nous	-
10	M0282901		Nut, Self Thread		Appelez-nous	-
11	B5747502		Mtg Plate-interlock		Appelez-nous	-
12	M0204617		Screw		Appelez-nous	-
13	M0102301		Clamp		Appelez-nous	-
14	D7382601		Wire Harn-interlock		Appelez-nous	-
15	C3670014		Switch-interlock (limit)		Appelez-nous	-
16	C3670014		Switch-interlock (limit)		Appelez-nous	-
17	B5755701		Actuating Arm		Appelez-nous	-
18	A3260201		Pin-retainer		Appelez-nous	-
19	C3680202		Strike-latch		Appelez-nous	-
20	B5675403		Bracket-latch		Appelez-nous	-
21	M0216517		Screw		Appelez-nous	-
22	A3163409		Switch, Preform		Appelez-nous	-
23	M0227520		Screw		Appelez-nous	-
24	A3171501		Clip,hairpin		Appelez-nous	-
25	M0270524		Washer		Appelez-nous	-
26	M0253230		Screw		Appelez-nous	-
27	M0285902		T Nut		Appelez-nous	-
28	M0205442		Screw, Nylock		Appelez-nous	-
29	A3030301		Gasket (inch)		Appelez-nous	-
30	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
31	M0213815		Screw		Appelez-nous	-
32	M0282005		Nut K				$ 7.07
33	M0227520		Screw		Appelez-nous	-
34	A1013901		Guard-switch		Appelez-nous	-
35	A1020601		Spring-compression		Appelez-nous	-
36	M0118801		Clip		Appelez-nous	-
37	M0213815		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
