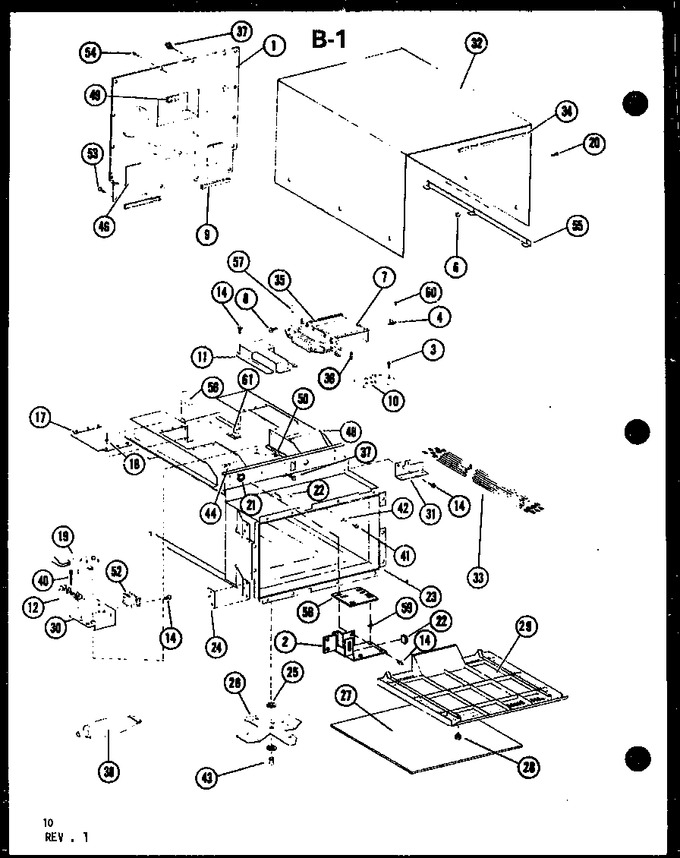

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Bezel Assy
02 - Door Assy
03 - Electrical Assy
04 - Interior Assy
05 - Page 2
06 - Page 3
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8801104 | Access Panel Weld |
|
- | |||||
| 2 | C8858801 | Bracket K |
|
- | |||||
| 3 | M0234114 | Screw |
|
- | |||||
| 4 | 18QBP110H | Thermal Cutout (Replaces: B5684104) |
|
- | |||||
| 4 | B5684107 | Protector, Thermal |
|
- | |||||
| 6 | WP3400029 | Nut (Replaces: M0282010) |
|
Immediately | $ 6.98 | ||||
| 7 | C8720508 | Assembly, Isolator |
|
- | |||||
| 8 | M0216517 | Screw |
|
- | |||||
| 9 | A3030335 | Gasket-per Ft |
|
- | |||||
| 10 | B5793501 | Thermal Plate |
|
- | |||||
| 11 | C8822301 | Air Duct Isolator |
|
- | |||||
| 12 | B5677203 | Terminal Block |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 17 | B5714101 | Cover-isolator |
|
- | |||||
| 18 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 19 | B5602811 | Motor |
|
- | |||||
| 20 | M0207943 | Screw |
|
- | |||||
| 21 | A3293503 | Snap Bushing |
|
- | |||||
| 22 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 23 | D7359407 | Oven Weld |
|
- | |||||
| 24 | A3250301 | Shim-hinge |
|
- | |||||
| 25 | A3109101 | Washer |
|
- | |||||
| 26 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 27 | B5795001 | Tray-oven |
|
- | |||||
| 28 | A1002301 | Screw |
|
- | |||||
| 29 | D7396201 | Grease Shield Kit |
|
- | |||||
| 30 | C8766002 | Plate Relay Mtg |
|
- | |||||
| 31 | B5756101 | Brkt Supt-interlock |
|
- | |||||
| 32 | D7379601 | Wrapper, Outer Case |
|
- | |||||
| 33 | D7471901 | Wire Harness |
|
- | |||||
| 34 | A3030301 | Gasket (inch) |
|
- | |||||
| 35 | A3225401 | Gasket K |
|
- | |||||
| 36 | A3225402 | Gasket K |
|
- | |||||
| 37 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 38 | M0275501 | Sealer |
|
- | |||||
| 40 | M0234117 | Screw |
|
- | |||||
| 41 | M0253504 | Screw |
|
- | |||||
| 42 | M0273612 | Washer |
|
- | |||||
| 43 | M0114002 | Clip |
|
- | |||||
| 44 | B5718906 | Gasket |
|
- | |||||
| 46 | A3205601 | Insulation |
|
- | |||||
| 48 | B5718903 | Gasket K |
|
- | |||||
| 49 | A3030304 | Gasket, 24`` |
|
- | |||||
| 50 | M0320903 | Terminal-ground |
|
- | |||||
| 52 | B5674309 | Relay K |
|
- | |||||
| 53 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 54 | A4539601 | Pop Rivet |
|
- | |||||
| 55 | C8812901 | Guide-strip |
|
- | |||||
| 56 | M0275011 | Tape-plastic |
|
- | |||||
| 57 | M0275115 | Tape Per Roll |
|
- | |||||
| 58 | C8858001 | Power Enable Circuit Board |
|
- | |||||
| 59 | B5763403 | Support K |
|
- | |||||
| 60 | M0234016 | Screw |
|
- | |||||
| 61 | M0104701 | Clip-cord |
|
- |
