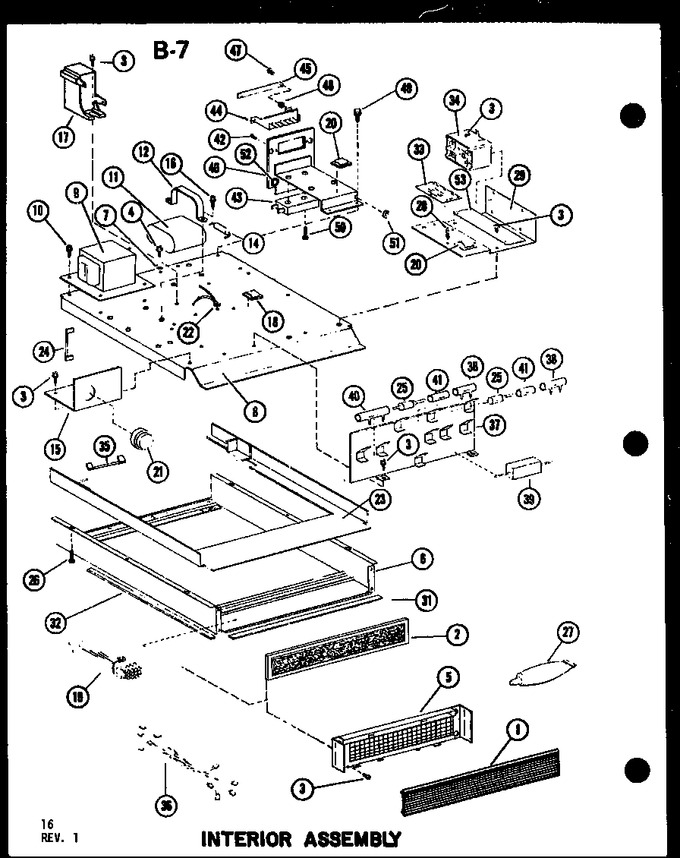

01 - Bezel Assy


02 - Door Assy


03 - Electrical Assy


04 - Interior Assy


05 - Page 2


06 - Page 3


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8708601		Stirrer Blade (antenna)		Appelez-nous	-
2	B5714801		Filter		Appelez-nous	-
3	M0213815		Screw		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
5	C8847901		Air Inlet Weld		Appelez-nous	-
6	C8709104		Base Pan Weldment		Appelez-nous	-
7	M0325301		Insulator, Term. K		Appelez-nous	-
8	D7203603		Chassis		Appelez-nous	-
9	D7325301		Transformer		Appelez-nous	-
10	M0253543		Screw K		Appelez-nous	-
11	R0160021		Capacitor Assy		Appelez-nous	-
12	A3184702		Bracket		Appelez-nous	-
14	M0305202		Resistor A		Appelez-nous	-
15	B5759401		Brkt-voltage Sel		Appelez-nous	-
16	M0216517		Screw		Appelez-nous	-
17	B5767802		Kit, Diode		Appelez-nous	-
17	B5767803		Kit, Diode		Appelez-nous	-
18	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
19	D7383101		Wiring Harness		Appelez-nous	-
20	M0104102		Clip, Cord				$ 8.10
21	A3276301		Alarm		Appelez-nous	-
22	M0320904		Terminal		Appelez-nous	-
23	C8775302		Oven Mtg Plate		Appelez-nous	-
24	D7292619		Jumper Wire		Appelez-nous	-
25	M0308102		Fuse		Appelez-nous	-
26	M0253543		Screw K		Appelez-nous	-
27	M0275501		Sealer		Appelez-nous	-
28	B5675501		Supt Ckt Bd A		Appelez-nous	-
29	C8800001		Brkt-surge Relay		Appelez-nous	-
31	C8737302		Gasket, Base Pan		Appelez-nous	-
32	C8737301		Gasket, Base Pan		Appelez-nous	-
33	B5691004		Time Delay K		Appelez-nous	-
34	C3669602		Kit, Relay		Appelez-nous	-
35	D7292614		Jumper Wire		Appelez-nous	-
36	C8814401		Wiring Harness		Appelez-nous	-
37	B5787601		Terminal Board		Appelez-nous	-
38	M0308601		Resistor A		Appelez-nous	-
39	M0308502		Resistor		Appelez-nous	-
40	M0308603		Resistor		Appelez-nous	-
41	M0321701		Sleeve		Appelez-nous	-
42	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
43	C8715203		Switch		Appelez-nous	-
44	B5790101		Switch		Appelez-nous	-
45	B5789401		Switch Cover		Appelez-nous	-
46	B5788001		Strain Relief Weld		Appelez-nous	-
47	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
48	M0800006		Spacer		Appelez-nous	-
49	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
50	M0227520		Screw		Appelez-nous	-
51	A3293503		Snap Bushing		Appelez-nous	-
52	M0370007		Strain Relief		Appelez-nous	-
53	B5788401		Insulation-relay		Appelez-nous	-
