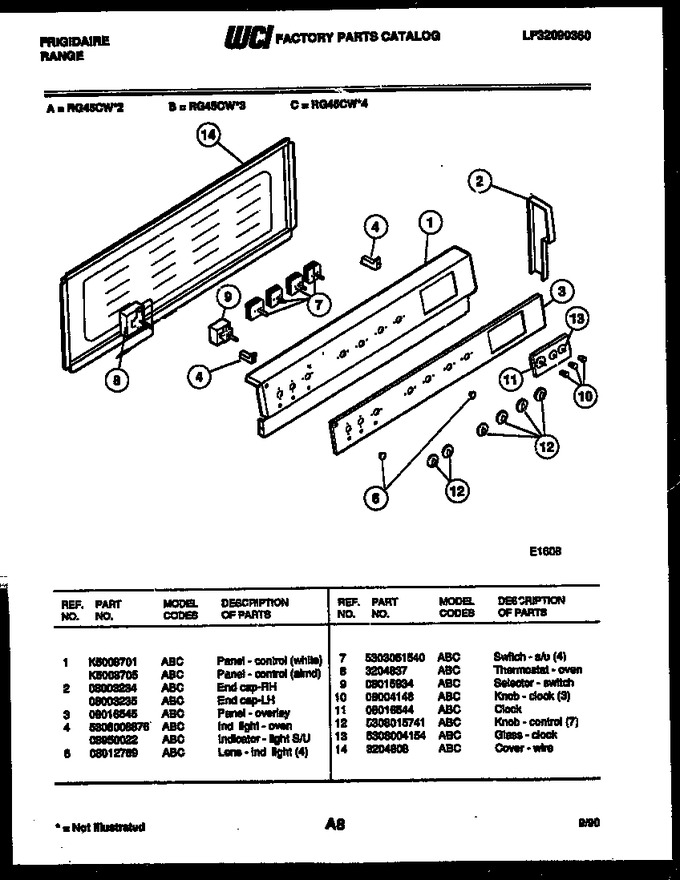

02 - Control Panel
03 - Door And Drawer Parts
04 - Door Parts
05 - Cooktop And Broiler Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K5008705 | Panel - Control (almd) |
|
- | |||||
| 2 | 08003234 | End Cap, Rh |
|
- | |||||
| 3 | 08016545 | Panel - Overlay |
|
- | |||||
| 4 | 5308008876 | Lnd Light - Oven |
|
- | |||||
| 6 | 08012769 | Lens - Ind Light (4) |
|
- | |||||
| 7 | 5303051540 | Switch - S/u (4) |
|
- | |||||
| 8 | 3204837 | Thermostat - Oven |
|
- | |||||
| 9 | 08015934 | Selector - Switch |
|
- | |||||
| 10 | 08004148 | Knob, Clock (3) |
|
- | |||||
| 11 | 08016544 | Clock |
|
- | |||||
| 12 | 5308015741 | Knob, Control (7) |
|
$ 91.02 | |||||
| 13 | 5308004154 | Glass, Clock |
|
- | |||||
| 14 | 3204808 | Cover Wire |
|
- | |||||
| 2A | 08003235 | End Cap, Lh |
|
- | |||||
| 4A | 08950022 | Indicator - Light S/u |
|
- |
