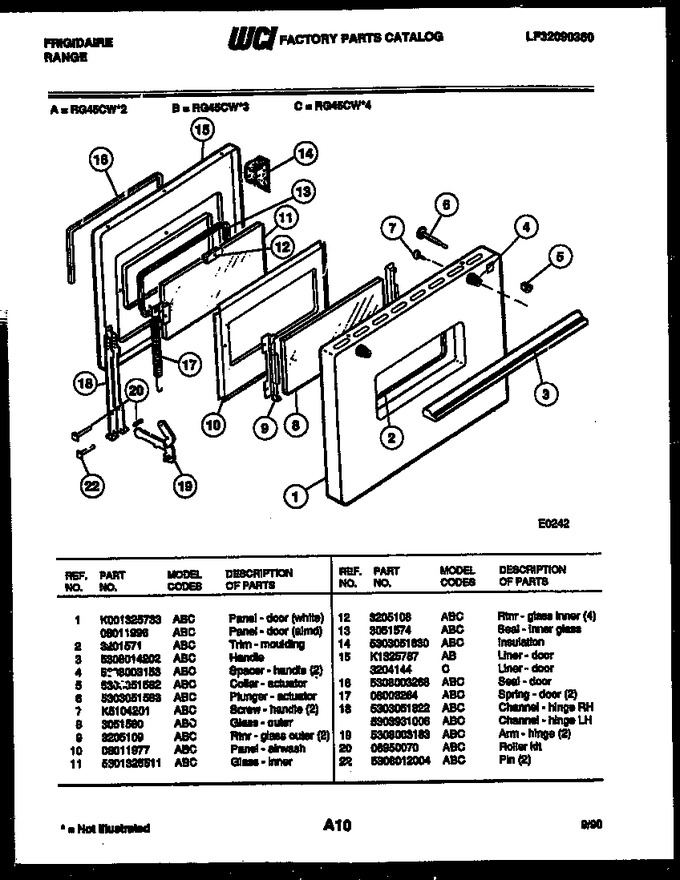

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door And Drawer Parts
04 - Door Parts
05 - Cooktop And Broiler Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011996 | Panel - Door (almd) |
|
- | |||||
| 2 | 3201571 | Trim - Moulding |
|
- | |||||
| 3 | 5308014202 | Handle |
|
- | |||||
| 4 | 5308003153 | Spacer-handle, (2) |
|
- | |||||
| 5 | 5303051582 | Collar Actuator |
|
- | |||||
| 6 | 5303051583 | Plunger - Actuator |
|
- | |||||
| 7 | K5104201 | Screw, Handle (2) |
|
- | |||||
| 8 | 3051580 | Glass-outer |
|
- | |||||
| 9 | 3205109 | Rtnr - Glass Outer (2) |
|
- | |||||
| 10 | 08011977 | Panel - Airwash |
|
- | |||||
| 11 | 5301325511 | Glass, Inner |
|
- | |||||
| 12 | 3205108 | Rtnr - Glass Inner (4) |
|
- | |||||
| 13 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 14 | 5303051630 | Insulation |
|
- | |||||
| 15 | K1325787 | Liner - Door |
|
- | |||||
| 16 | 5308003268 | Seal, Door |
|
- | |||||
| 17 | 08003264 | Spring-oven Door |
|
- | |||||
| 18 | 5303051822 | Channel - Hinge Rh |
|
- | |||||
| 19 | 5308003183 | Arm - Hinge (2) |
|
$ 90.35 | |||||
| 20 | 08950070 | Roller Kit |
|
- | |||||
| 22 | 5308012004 | Pin (2) |
|
$ 8.29 | |||||
| 18A | 5303931006 | Channel - Hinge Lh |
|
- |
