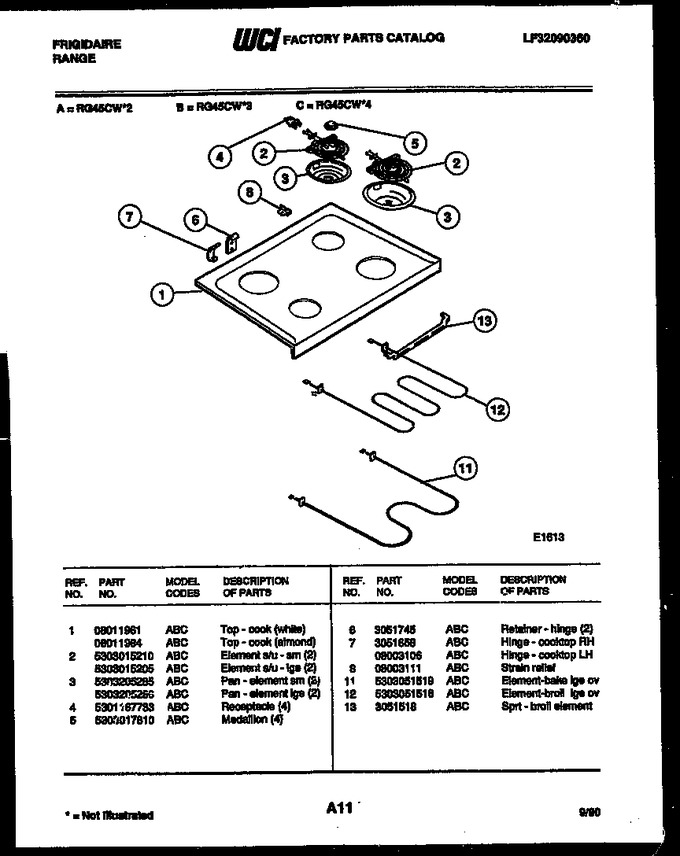

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011984 | Top, Cook, Almond |
|
- | |||||
| 2 | 5303015210 | Element S/u - Sm (2) |
|
- | |||||
| 3 | 5303205285 | Pan - Element Sm (2) |
|
- | |||||
| 4 | 5303935058 | Receptacle (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 5 | 5303017810 | Medallion (4) |
|
- | |||||
| 6 | 3051745 | Retainer Hinge (2) |
|
- | |||||
| 7 | 3051658 | Hinge Cooktop Rh |
|
- | |||||
| 8 | 08003111 | Strain Relief |
|
- | |||||
| 11 | 5303051519 | Element-bake Lge Ov |
|
Immediately | $ 44.70 | ||||
| 12 | 5303051516 | Element-broil Lge Ov |
|
$ 189.23 | |||||
| 13 | 3051518 | Sprt - Broil Element |
|
- | |||||
| 2A | 5303015205 | Element S/u - Lge (2) |
|
- | |||||
| 3A | 5303205286 | Pan - Element Lge (2) |
|
- | |||||
| 7A | 08003106 | Hinge - Cooktop Lh |
|
- |
