01 - Bezel Assy


02 - Control Assemlby


03 - Door Assy


04 - Electrical Assy


05 - Interior Assy


06 - Oven Cavity Assy


07 - Page 14

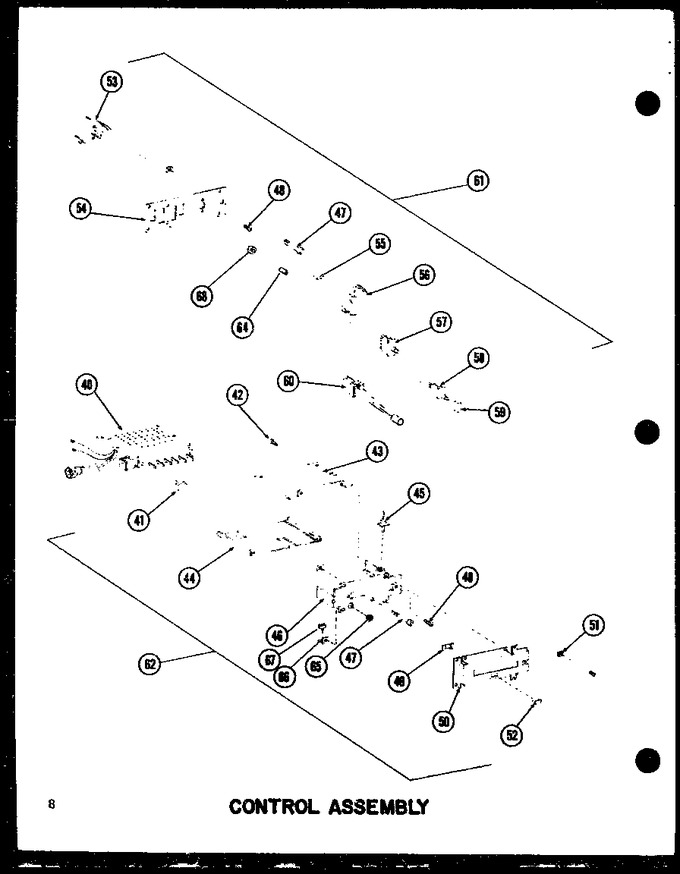

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
40	C8712902		Timer Assy		Appelez-nous	-
40	D7210901		Timer Assy		Appelez-nous	-
41	B5674201		Button Timer A-k		Appelez-nous	-
42	M0230015		Screw		Appelez-nous	-
43	C3679301		Insulation A		Appelez-nous	-
44	B5674602		Cover-timer		Appelez-nous	-
45	B5675501		Supt Ckt Bd A		Appelez-nous	-
46	C8722202		Bracket, Timer Mounting		Appelez-nous	-
46	C8722201		Bracket-timer		Appelez-nous	-
47	A3184401		Pilot Light A		Appelez-nous	-
48	M0202502		Screw		Appelez-nous	-
49	M0285801		Clip		Appelez-nous	-
50	C8707602		Escutcheon, Elect. Timer		Appelez-nous	-
50	C8707601		Escutcheon-el Timer		Appelez-nous	-
51	M0288301		Speed Nut K		Appelez-nous	-
52	A3229601		Lens-pilot Light		Appelez-nous	-
53	C8701201		Timer-12 Min		Appelez-nous	-
54	B5712801		Panel-dial Timer		Appelez-nous	-
55	M0117001		Clip		Appelez-nous	-
56	B5760601		Knob		Appelez-nous	-
56	D7028702		Knob A		Appelez-nous	-
57	B5715401		Switch Pb A		Appelez-nous	-
58	B5674701		Switch		Appelez-nous	-
59	B5674001		Button Stop A		Appelez-nous	-
59	B5674002		Button Start A		Appelez-nous	-
59	B5674003		Button Defrost		Appelez-nous	-
60	C8712801		Wiring Harness		Appelez-nous	-
61	C8713201		Timer Assy-dial		Appelez-nous	-
62	C8712901		Timer Assy-elect		Appelez-nous	-
64	M0208015		Screw, Set		Appelez-nous	-
65	A4554809		Snap Bushing		Appelez-nous	-
66	A3267701		Brkt-switch		Appelez-nous	-
67	B5723401		Switch-timer		Appelez-nous	-
68	A3267801		Ext-shaft		Appelez-nous	-
	NOTE:		Refer To Amana Kit R1571-55 For Instructions To Install Door Open Timer Cancel Feature On Original Model Rc-14; Mfg. No. P72100-1m Unit. Early Production On F		Appelez-nous	-
