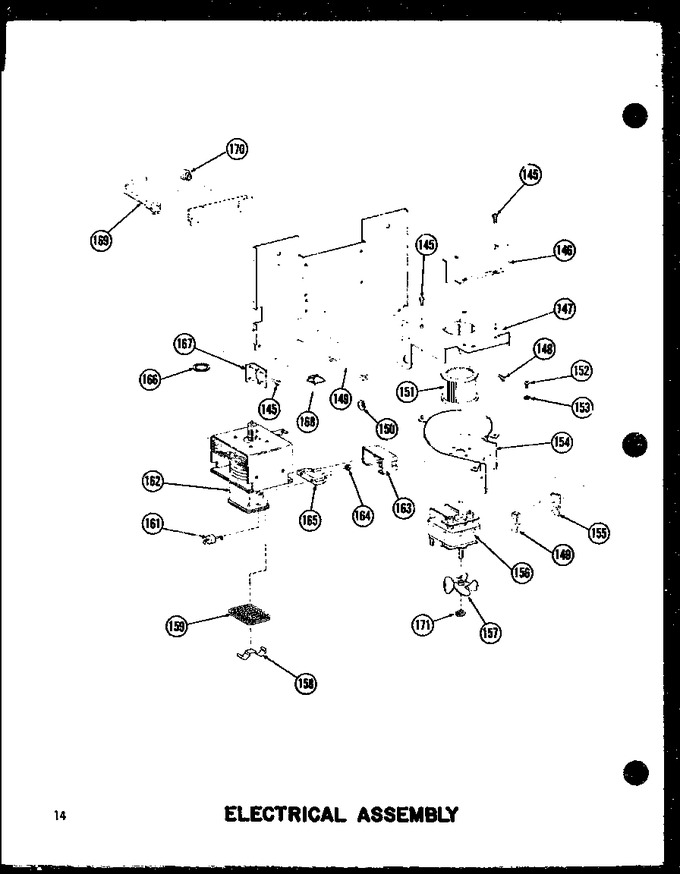

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
145	M0218116		Screw		Appelez-nous	-
146	B5712301		End Plate-plenum		Appelez-nous	-
147	C8707801		Brkt-blower Scroll		Appelez-nous	-
148	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
149	A3030303		Gasket (per Foot)		Appelez-nous	-
150	A4554806		Snap Bushing		Appelez-nous	-
151	C3670802		Wheel, Blower		Appelez-nous	-
152	M0202642		Screw		Appelez-nous	-
153	M0272605		Washer		Appelez-nous	-
154	C8710701		Wldmt-blower Scroll		Appelez-nous	-
155	A3030309		Gasket (per Foot)		Appelez-nous	-
156	C8711902		Kit, Motor		Appelez-nous	-
157	B5706702		Fan Blade-blower		Appelez-nous	-
158	A3145401		Bale Strap K		Appelez-nous	-
159	B5647901		Cover Cap Box K		Appelez-nous	-
161	A3148801		Capacitor K		Appelez-nous	-
162	D7138201		Assembly, Magnetron		Appelez-nous	-
163	B5656001		Shield Hv K		Appelez-nous	-
164	M0281901		Hex Nut		Appelez-nous	-
165	B5655902		Clip K		Appelez-nous	-
166	A3185102		Gasket, Magnetron		Appelez-nous	-
167	B5716901		Bracket-connector		Appelez-nous	-
168	M0104102		Clip, Cord				$ 8.10
169	B5715501		Power Cord		Appelez-nous	-
170	M0371301		Strain Relief		Appelez-nous	-
171	M0118901		Clip		Appelez-nous	-
	NOTE:		Refer To Amana Kit R1571-55 For Instructions To Install Door Open Timer Cancel Feature To Original Model Rc-20; Mfg. No. P27100-2m Unit.		Appelez-nous	-
