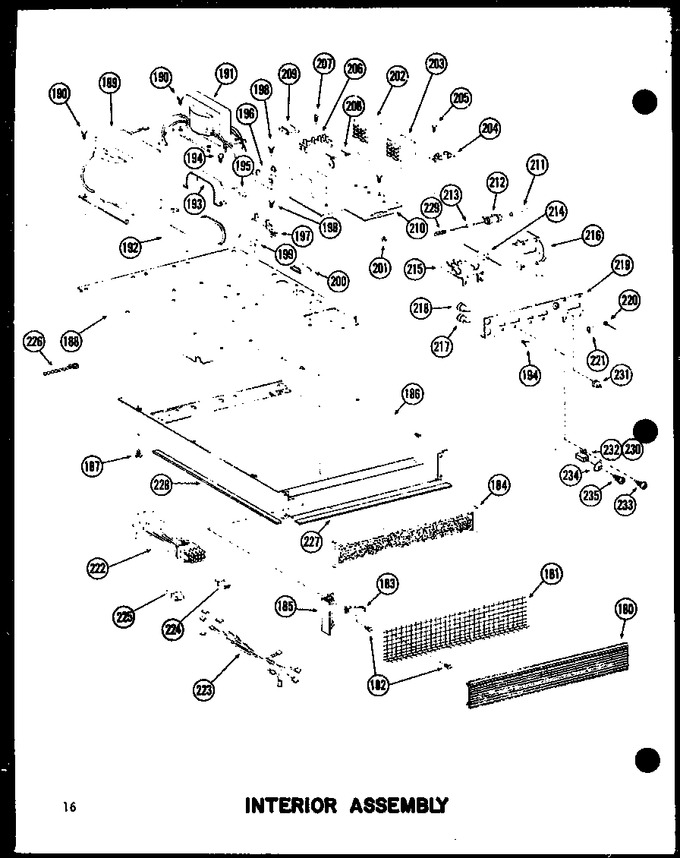

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 180 | C8708501 | Grille Air Inlet |
|
- | |||||
| 181 | B5713901 | Screen, Air Intake |
|
- | |||||
| 182 | M0230015 | Screw |
|
- | |||||
| 183 | A3225201 | Clip |
|
- | |||||
| 183 | A3225202 | Clip |
|
- | |||||
| 184 | B5714801 | Filter |
|
- | |||||
| 185 | B5714401 | End Cap-grill |
|
- | |||||
| 186 | C8709101 | Base Pan Weld |
|
- | |||||
| 187 | M0253543 | Screw K |
|
- | |||||
| 188 | D7203601 | Chassis |
|
- | |||||
| 189 | D7199701 | Transformer-hv Plate |
|
- | |||||
| 190 | M0253543 | Screw K |
|
- | |||||
| 191 | C8707501 | Transformer-fil |
|
- | |||||
| 192 | C3666502 | Capacitor, H.v. |
|
- | |||||
| 192 | R0160010 | Capacitor, H.v. With M3052-2 R |
|
- | |||||
| 193 | A3184702 | Bracket |
|
- | |||||
| 194 | M0218116 | Screw |
|
- | |||||
| 195 | M0305202 | Resistor A |
|
- | |||||
| 196 | B5672401 | Rectifier |
|
- | |||||
| 198 | M0216517 | Screw |
|
- | |||||
| 199 | M0305204 | Resistor |
|
- | |||||
| 200 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 201 | WP488130 | Nut (Replaces: M0282007) |
|
$ 6.27 | |||||
| 202 | C8709603 | Relay-power |
|
- | |||||
| 203 | C8709602 | Relay-surge |
|
- | |||||
| 204 | A3225501 | Terminal Board |
|
- | |||||
| 205 | M0227501 | Screw |
|
- | |||||
| 206 | B5677203 | Terminal Block |
|
- | |||||
| 207 | M0234117 | Screw |
|
- | |||||
| 208 | M0305007 | Resistor, Relay A |
|
- | |||||
| 209 | M0104401 | Clip-cord |
|
- | |||||
| 210 | B5713001 | Bracket-relay |
|
- | |||||
| 211 | M0321701 | Sleeve |
|
- | |||||
| 212 | M0305010 | Resistor, 4 Ohm, 8 Watt |
|
- | |||||
| 213 | M0308102 | Fuse |
|
- | |||||
| 215 | B5687401 | Terminal Board |
|
- | |||||
| 216 | C8701101 | Meter |
|
- | |||||
| 217 | M0325401 | Bushing,terminal |
|
- | |||||
| 218 | M0325402 | Bushing,terminal |
|
- | |||||
| 219 | C8706601 | Brkt-fuse Resistor |
|
- | |||||
| 220 | A4539601 | Pop Rivet |
|
- | |||||
| 221 | M0110501 | Clip K |
|
- | |||||
| 222 | D7227201 | Wiring Harness |
|
- | |||||
| 223 | C8711201 | Wiring Harness-hv |
|
- | |||||
| 224 | M0325301 | Insulator, Term. K |
|
- | |||||
| 225 | M0325501 | Insulator, Pod K |
|
- | |||||
| 226 | M0321204 | Wire Tie |
|
- | |||||
| 227 | B5718901 | Gasket-base Pan |
|
- | |||||
| 228 | B5718902 | Gasket-base Pan |
|
- | |||||
| 229 | M0321702 | Sleeve K |
|
- |
