SELECT A DIAGRAM

01 - Cover


02 - Oven Door


03 - Control Panel, Cook-master, Switche


04 - Cook Top, Surface Units, Drip Pans


05 - Oven Liner, Side Panels


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308012552		Handle		Appelez-nous	-
2	5303051582		Collar		Appelez-nous	-
3	5308003153		Spacer (2)		Appelez-nous	-
4	5303051583		Plunger, Light Switch		Appelez-nous	-
5	3051580		Glass-outer		Appelez-nous	-
6	5303051630		Insulation		Appelez-nous	-
7	3051578		Retainer-outer Glass (2)		Appelez-nous	-
8	3051575		Retainer, Inner Glass (4)		Appelez-nous	-
9	5303204569		Liner, Oven Door		Appelez-nous	-
10	5301325511		Glass, Inner		Appelez-nous	-
11	3051574		Seal, Inner Glass				$ 36.58
12	5308003268		Gasket		Appelez-nous	-
13	5303051822		Channel Assembly (2)		Appelez-nous	-
14	3051571		Rivet (4)		Appelez-nous	-
15	5308003183		Hinge Arm Assembly (2)				$ 90.35
16	5308012004		Pin				$ 8.29
17	3051824		Roller Kit (2)		Appelez-nous	-
18	08003264		Spring-oven Door		Appelez-nous	-
19	3017200		Panel, Airwash		Appelez-nous	-
20	5301325497		Panel, Door, Wheat		Appelez-nous	-
21	3201571		Molding, J		Appelez-nous	-

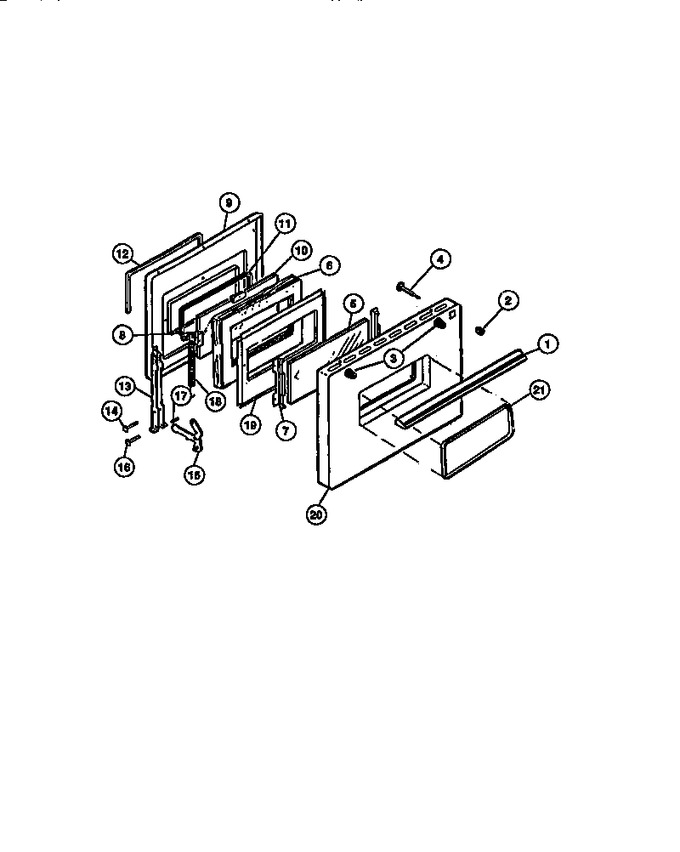

    View Diagram in Separate Window       Print Part List
