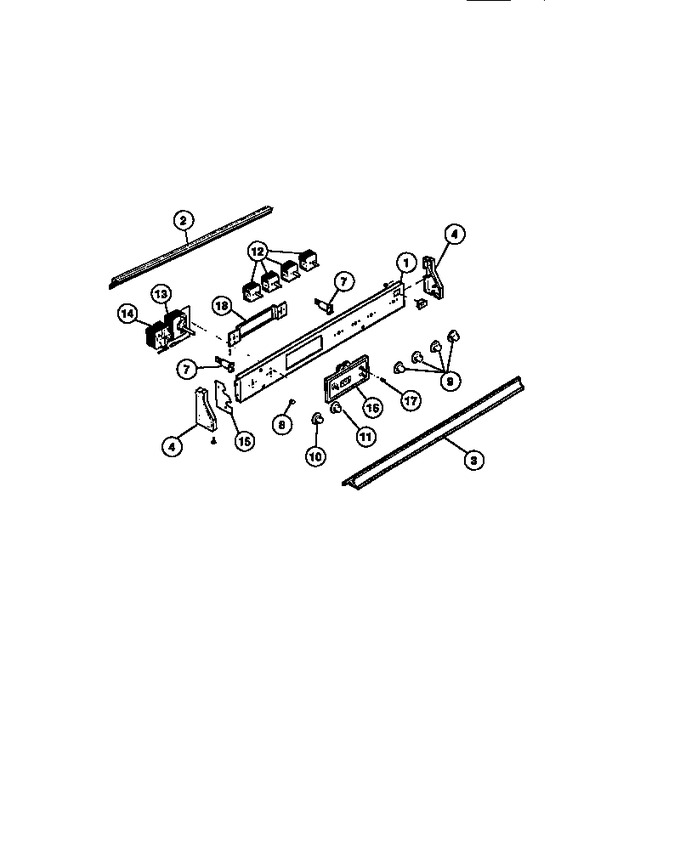

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08015962 | Panel, Control |
|
- | |||||
| 2 | 08015917 | Rail, Top |
|
- | |||||
| 3 | 08015921 | Rail, Bottom |
|
- | |||||
| 4 | 08015936 | Cap, End Rh |
|
- | |||||
| 7 | 3051676 | Light, Signal Surface Unit |
|
- | |||||
| 8 | 3016821 | Lens, Signal (4) |
|
- | |||||
| 9 | 08015955 | Knob, Surface Unit (4) |
|
- | |||||
| 10 | 08015959 | Knob, Thermostat |
|
- | |||||
| 11 | 08015957 | Knob, Selector Switch |
|
- | |||||
| 12 | 5303051540 | Switch, Surface Unit, Small (2) |
|
- | |||||
| 13 | 5308015942 | Thermostat |
|
- | |||||
| 14 | 08015934 | Switch, Selector |
|
- | |||||
| 15 | 08016267 | Plate, End Cap (2) |
|
- | |||||
| 16 | 08015945 | Clock |
|
- | |||||
| 17 | 5303016892 | Knob, Clock (3) |
|
- | |||||
| 18 | 3204642 | Bracket, Timer |
|
- | |||||
| 12A | 5301313767 | Switch, Surface Unit, Large (2) |
|
- | |||||
| 4A | 08015937 | Cap, End Lh |
|
- | |||||
| 7A | 08015930 | Light, Signal, Oven |
|
- |
